Description
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-215-001-003 | 1 | 3.3 | 303 |
| VTX-215-001-005 | 1 | 5 | 200 |
| VTX-215-001-009 | 1 | 9 | 111 |
| VTX-215-001-012 | 1 | 12 | 83 |
| VTX-215-001-015 | 1 | 15 | 67 |
| VTX-215-001-024 | 1 | 24 | 42 |

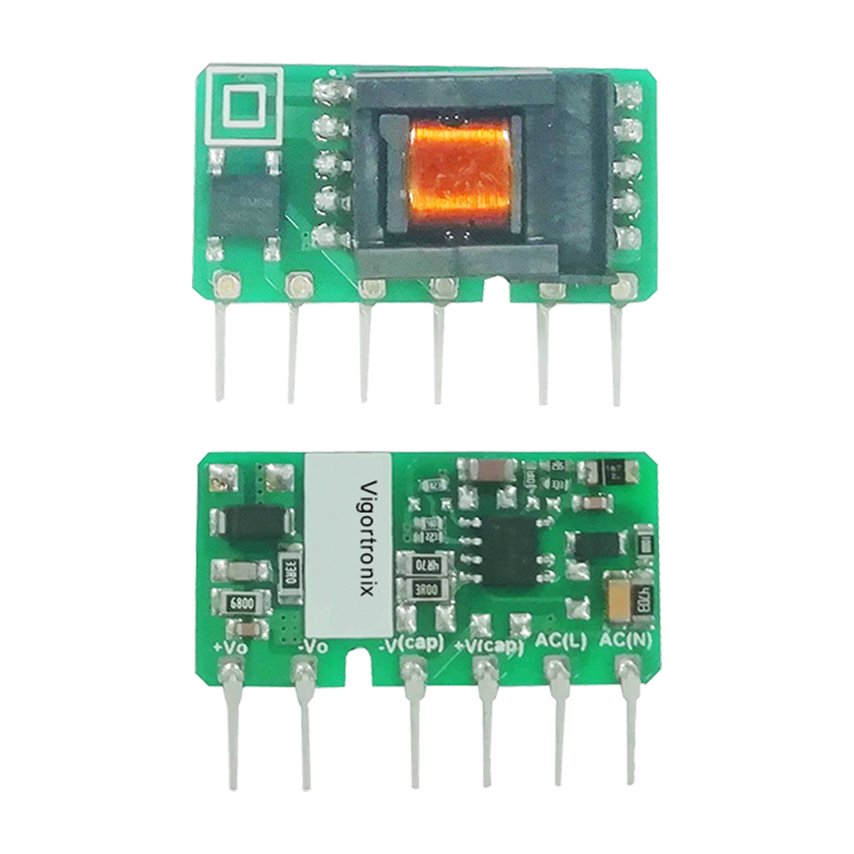

1 Watt SIP Open AC-DC Converter
Overview
• 1W Small Compact SIP style AC-DC converter
• Wide AC & DC Input 85V to 305VAC, 70-430VDC
• Temperature Range -40OC to +85OC
• EMC Compliant with external components
• Output Range: 5V – 24VDC
• Low Standby Power <0.3W
• Fully Isolated Pri – Sec >3000Vrms
• Insulation: Class II
• Materials: UL94-V0
• EN62368, EN61558
• 3 Year Warranty
