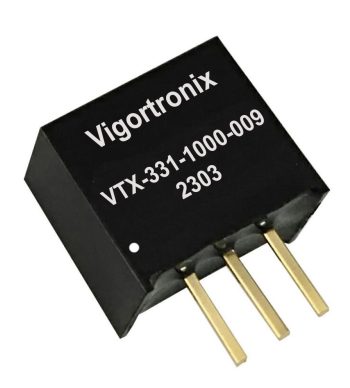

1A SIP DC-DC Converter

Overview

  • Wide Input Voltage
  • Non-Isolated
  • Regulated Single Output
  • Supports Negative Output
  • Output Short Cicuit Protection
  • High Efficiency up to 96%
  • Temperature Range -40OC to +85OC
  • Low Standby Current, Low as 0.3mA
  • Materials: UL94-V0
  • IEC/EN/UL62368, EN61558, EN60335
  • 3 Year Warranty
Datasheet CAD File

Description

VTX-331-1000-## are high efficiency switching regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation, home appliances, instrumentation, communication and civil applications.

Part NumberOutput Current (mA)Input Voltage VDC (Range)Output Voltage (VDC)
VTX-331-1000-003100024 (6-36)3.3
VTX-331-1000-0051000/ -50024 (8-36) / 12 (8-27)5/ -5
VTX-331-1000-006100024 (10-36)6.5
VTX-331-1000-009100024 (13-36)9
VTX-331-1000-0121000/ -30024 (16-36)/ 12 (8-20)12/ -12
VTX-331-1000-0151000/ -30024 (20-36)/ 12 (8-18)15/ -15
