1 Watt Zero Crossing AC-DC Converter (3 Series)

Overview

• Zero Crossing Feature – NEW
• 1W Low Profile <15.0mm Height
• MTBF: 1,000,000 Hours
• Wide Input Range: 90 – 305VAC
• Low Standby Power <0.15W
• High Temperature 85OC Full Load
• EMC Compliant – No External Components
• TUV, UL Approved

Datasheet Footprint CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-001-303X13.3300
VTX-214-001-305X15200

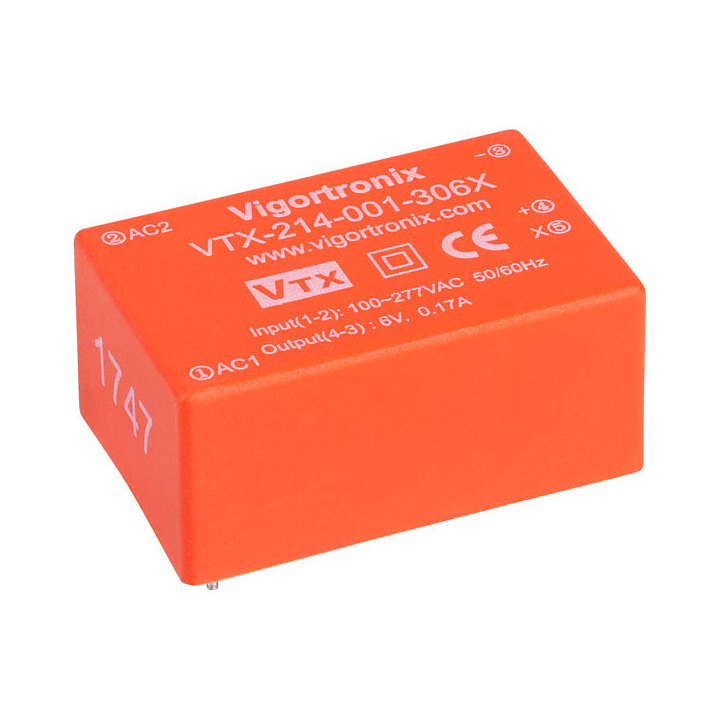

VTX-214-001-306X16166
VTX-214-001-307X17.5133
VTX-214-001-308X18125
VTX-214-001-309X19111
VTX-214-001-310X110100
VTX-214-001-312X11283
VTX-214-001-315X11566
VTX-214-001-318X11855
VTX-214-001-324X12442
VTX-214-001-348X14821
