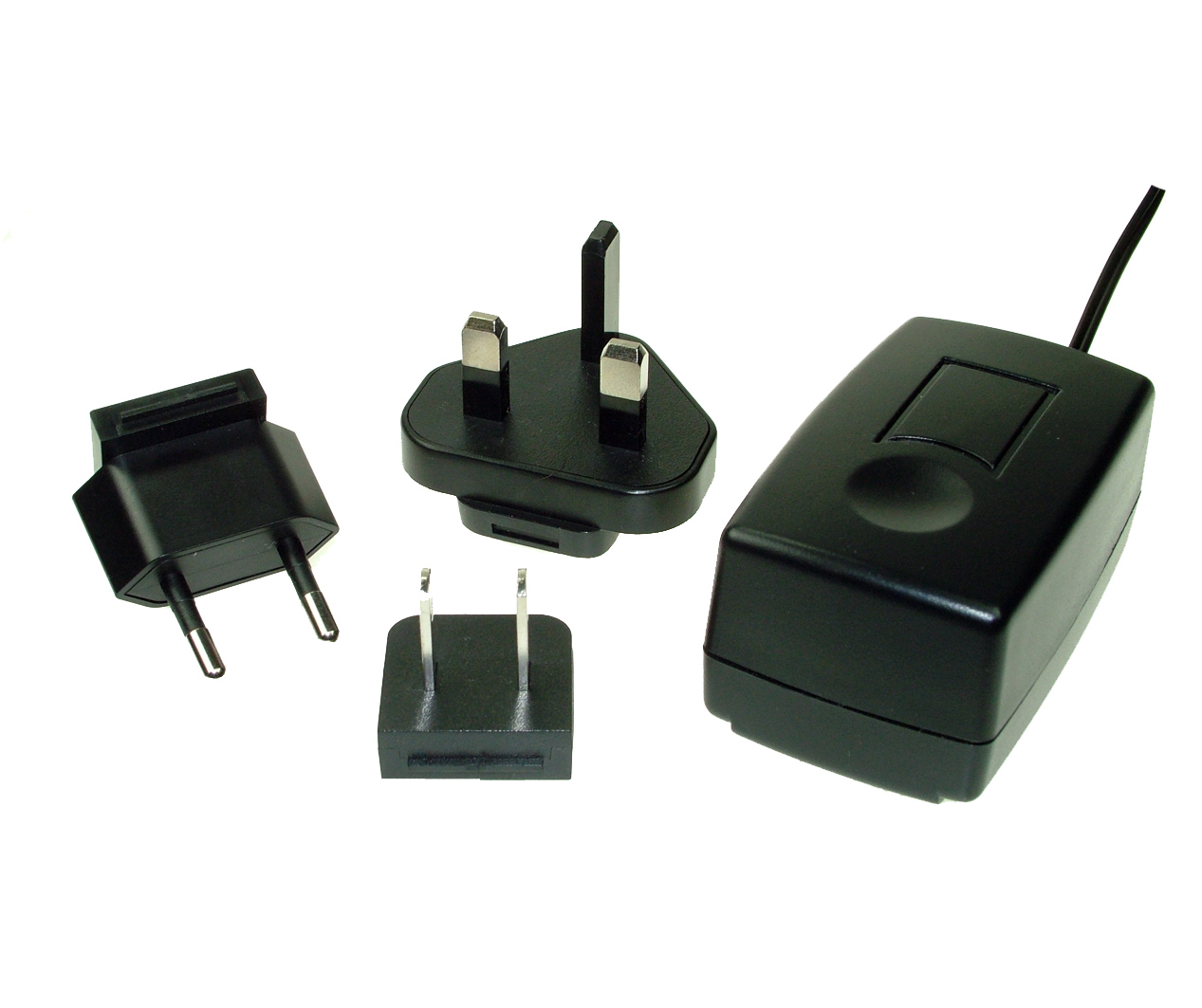

12W Plug top Interchangeable Headers

Overview

Features:


  • 12W Single Ouput
  • Low standby power <0.3w
  • Input: 90 ~ 264Vac , 47~63Hz (120~370VDC)
  • Output range: 6V~24VDC
  • Pin Headers available: UK, EU, US, AUS, Etc
  • Low Ripple & Noise.
  • Meets EPS 2.0 LEVEL V
  • Dielectric Strength: 3600Vrms
  • Interchangeable Pin Headers
  • Safety: UL, CUL, EN60950, CE
Datasheet
SKU: a769cd2f4445

Description

Part Number Output Voltage (Vdc) Output Current (mA)
VTX-212-012-506 6 2000
VTX-212-012-509 9 1333
VTX-212-012-512 12 1000
VTX-212-012-515 15 800
VTX-212-012-518 18 666
VTX-212-012-520 20 600
VTX-212-012-524 24 500
