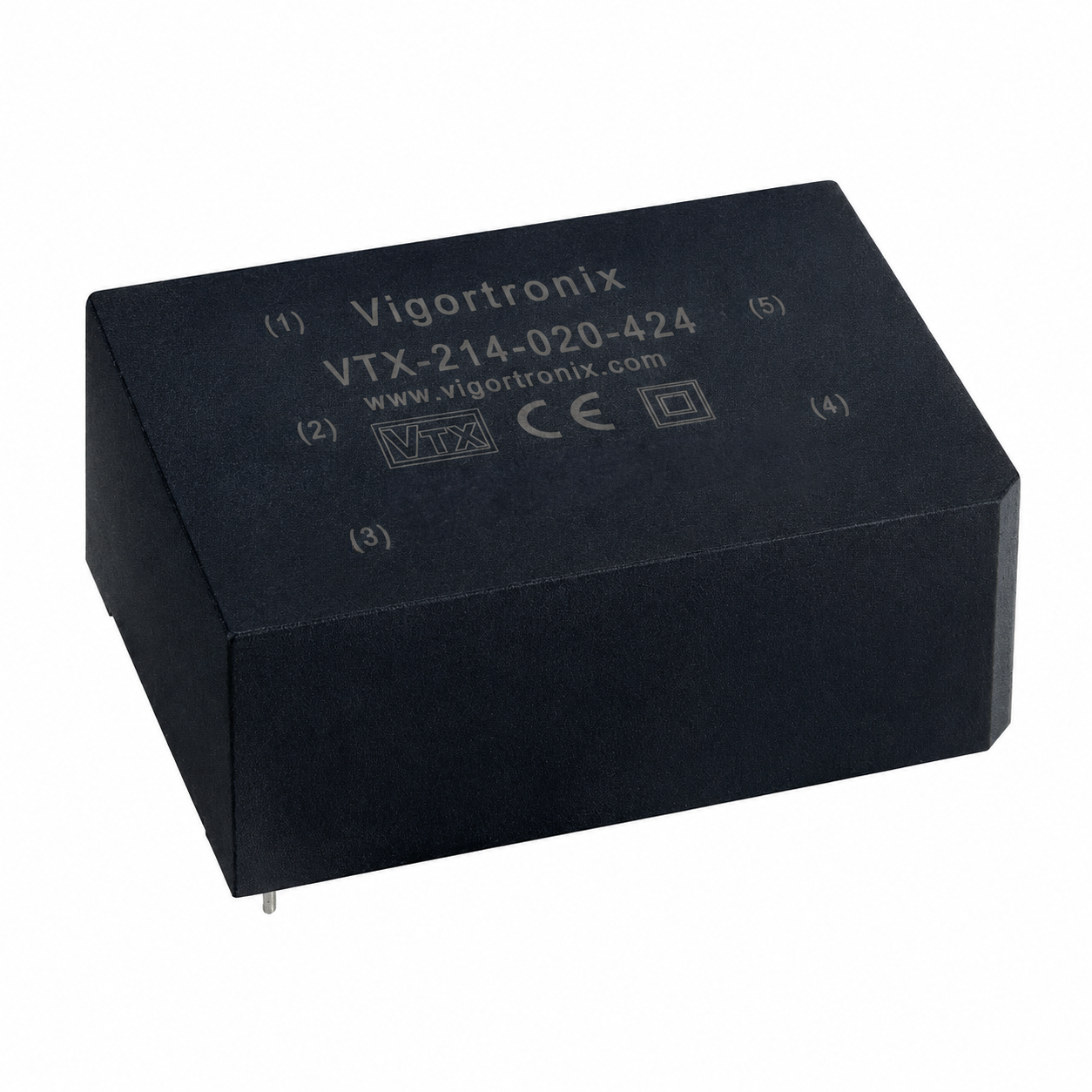

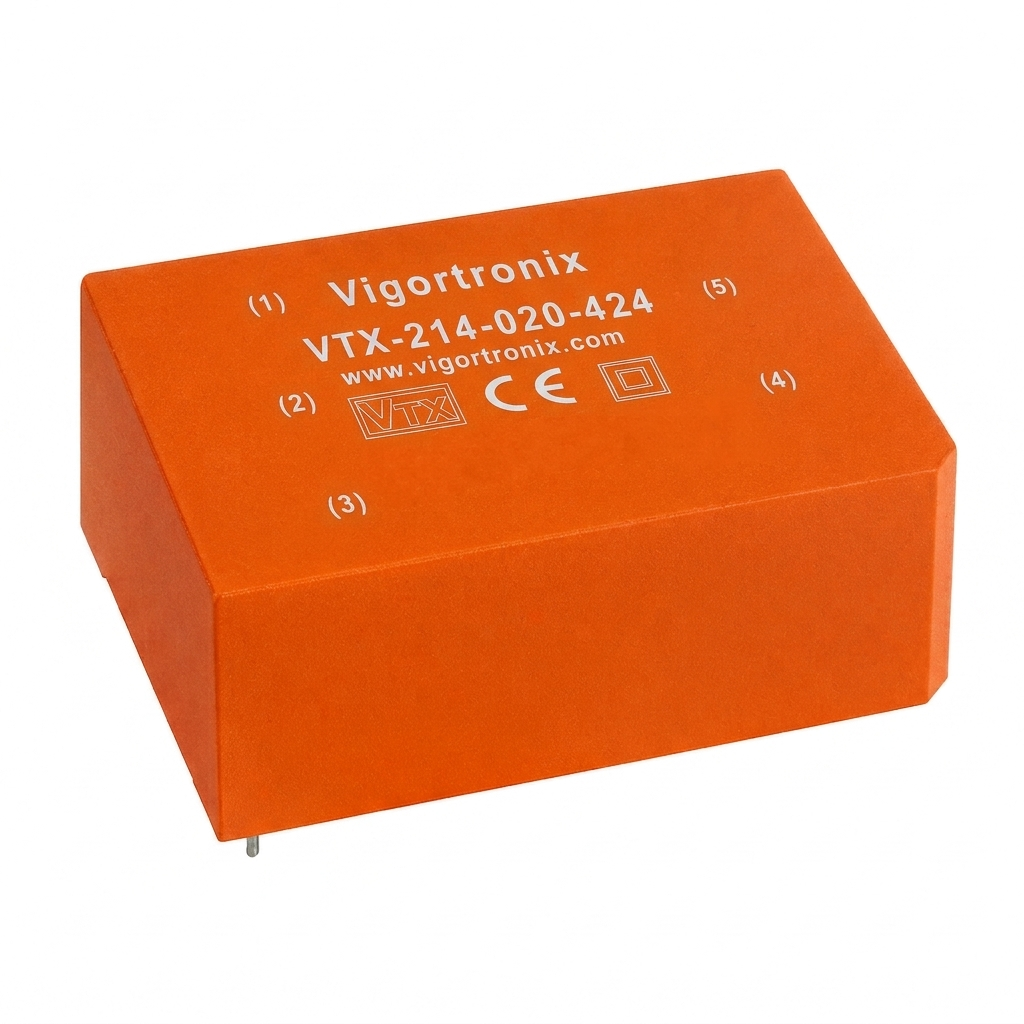

20 Watt AC-DC Converter (4 Series)

Overview

• 20W Compact Size 62.0 x 45.0 x 22.0mm
• Wide AC & DC Input 85V to 305VAC (120 to 430VDC)
• Temperature Range -40OC to +85OC
• DIP Dual Output
• I/O isolation test voltage 2500VAC 5mA 1min
• Internal SMD Design
• High Flame-Retardant Housing
• Cooling Method: Natural Convection Cooling
• Excellent EMC shielding, output over-current protection, short-circuit protection.

Datasheet

Description

Part NumberPower Rating (Watts)Output Voltage 1/ Current Output Voltage 2/ Current
VTX-214-020-40520+5V/2000mA-5V/2000mA
VTX-214-020-40920+9/1111mA-9/1111mA
VTX-214-020-41220+12V/833mA-12V/833mA
VTX-214-020-41520+15V/667mA-15V/667mA
VTX-214-020-42420+24V/417mA-24V/417mA
VTX-214-020-4505205V5V/ customised
VTX-214-020-4512205V12V/ customised
VTX-214-020-4524205V24V/ customised
VTX-214-020-46052012V5V/ customised
VTX-214-020-46122012V12V/ customised
VTX-214-020-46242012V24V/ customised
