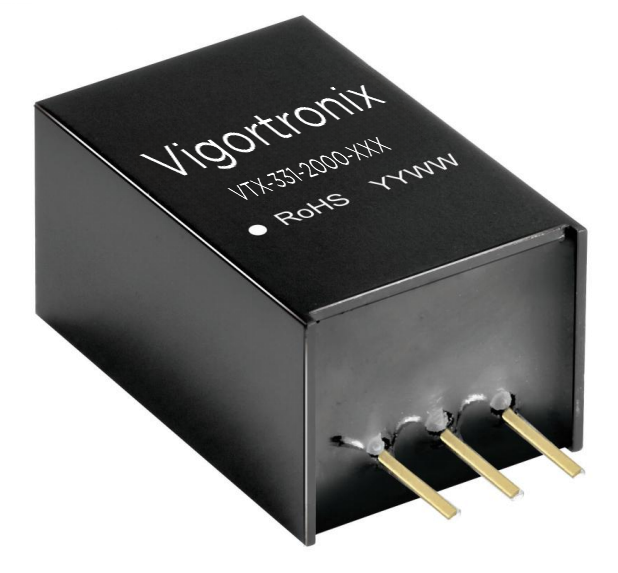

2A SIP DC-DC Converter
- High efficiency up to 96%
- No-load input current as low as 0.1 mA
- Operating ambient temperaturerange:-40℃ to +85℃
- Output short-circuit protection
Description
| Part Number | Power Rating (A) | Output Voltage (VDC) | Input Voltage (VDC) | Current (mA) Max. | Capacitive Load (uF) | Package Type |
| VTX-331-2000-003 | 2 | 3.3 / -3.3 | 24 / 12 Nominal | 2000 / 1000 | 1800 / 1000 | SIP |
| VTX-331-2000-005 | 2 | 5 / -5 | 24 / 12 Nominal | 2000 / 1000 | 1000 / 680 | SIP |
| VTX-331-2000-009 | 2 | 9 / -9 | 24 / 12 Nominal | 2000 / 800 | 680 / 330 | SIP |
| VTX-331-2000-012 | 2 | 12 / -12 | 24 / 12 Nominal | 2000 / 600 | 470 / 220 | SIP |
| VTX-331-2000-015 | 2 | 15 / -15 | 24 / 12 Nominal | 2000 / 600 | 470 / 220 | SIP |
