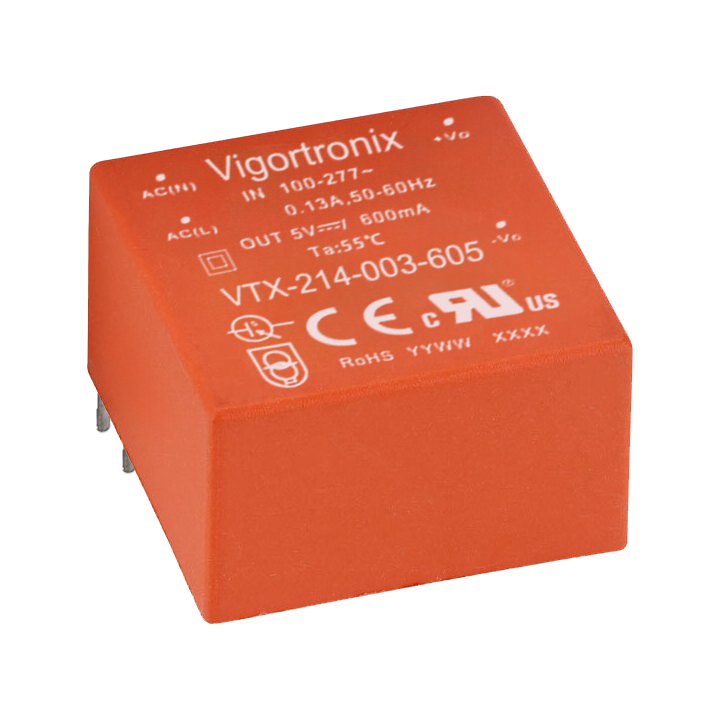

3 Watt Compact Converter (6 Series)

Overview

• 3W Small Compact Size 25.4 x 25.4 x 17.6mm
• Wide AC & DC Input 85V to 305VAC
• Temperature Range -40OC to +85OC
• Output Range: 3.3V – 24VDC
• Low Standby Power <0.1W
• Fully Isolated Pri – Sec >4200Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558, EN60335
• 3 Year Warranty

Datasheet CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-003-60333.3909
VTX-214-003-60535600
VTX-214-003-60939333
VTX-214-003-612312250
VTX-214-003-615315200
VTX-214-003-624324125
