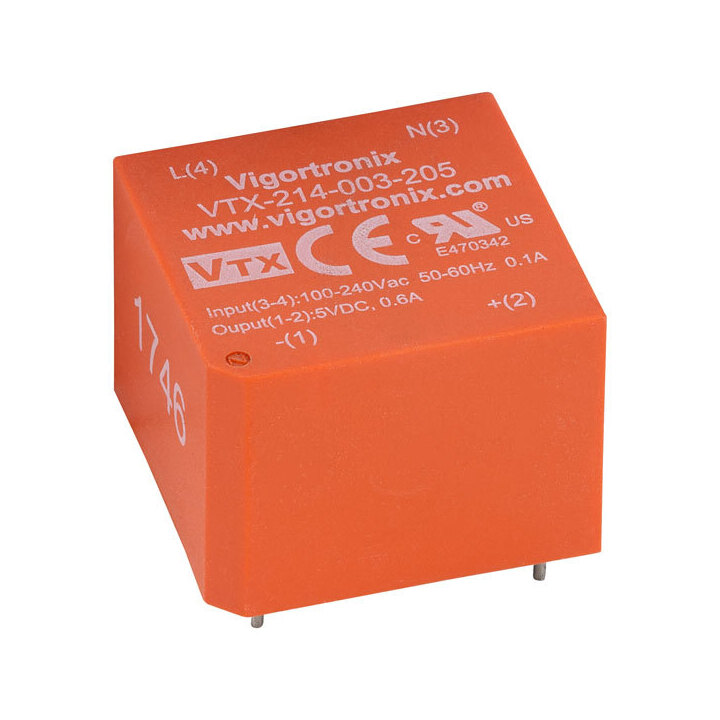

3 Watt Compact Converter (7 Series)

Overview

• 3W Small Compact Size 25.0 x 25.0 x 16mm
• Wide AC & DC Input 90V to 264VAC
• Temperature Range -25OC to +80OC
• Output Range: 3.3V – 24VDC
• Low Standby Power <0.1W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558

Datasheet Footprint CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-003-7032.753.3833
VTX-214-003-70535600
VTX-214-003-70939333
VTX-214-003-712312250
VTX-214-003-715315200
VTX-214-003-718318167
VTX-214-003-724324125
