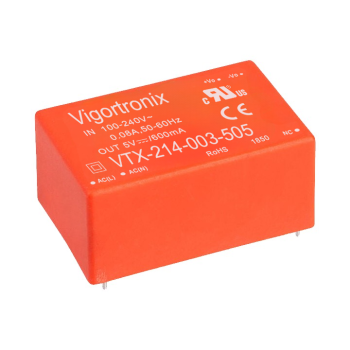

3 Watt Compact Converter (5 Series)

Overview

• 3W Small Compact Size 37.0 x 24.5 x 18.0mm
• Wide AC & DC Input 85V to 264VAC
• Temperature Range -40OC to +70OC
• Output Range: 3.3V – 24VDC
• Output short circuit, Over-current protection
• Low Standby Power <0.2W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• UL/EN/IEC62368, EN55032 Class B

Datasheet CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-003-50333.3909
VTX-214-003-50535600
VTX-214-003-50939333
VTX-214-003-512312250
VTX-214-003-515315200
VTX-214-003-518318166
VTX-214-003-524324125
