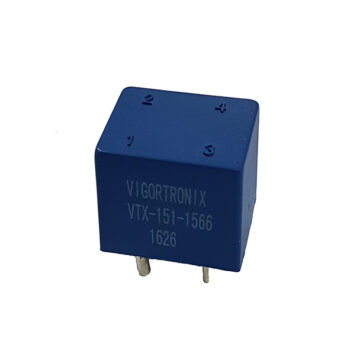

30Amp Precision Current Transformer

Overview

Current Range 0 – 60Amp Max,  Nominal 30Amp

Transformer Accuracy 0.5%
  • Built-in Busbar
  • Range of Operational Frequency 20Hz ~ 20kHz
  • Isolation Voltage: 4kVac
  • Various Winding Ratios
  • Materials UL94-V0
  • Insulation Rating Class F (155OC)
  • Ratio: 1:2000 (other ratio’s available)
Datasheet CAD File

Description

Part NumberMax CurrentNominal CurrentRatioAccuracy
VTX-151-156660301:20000.50%
