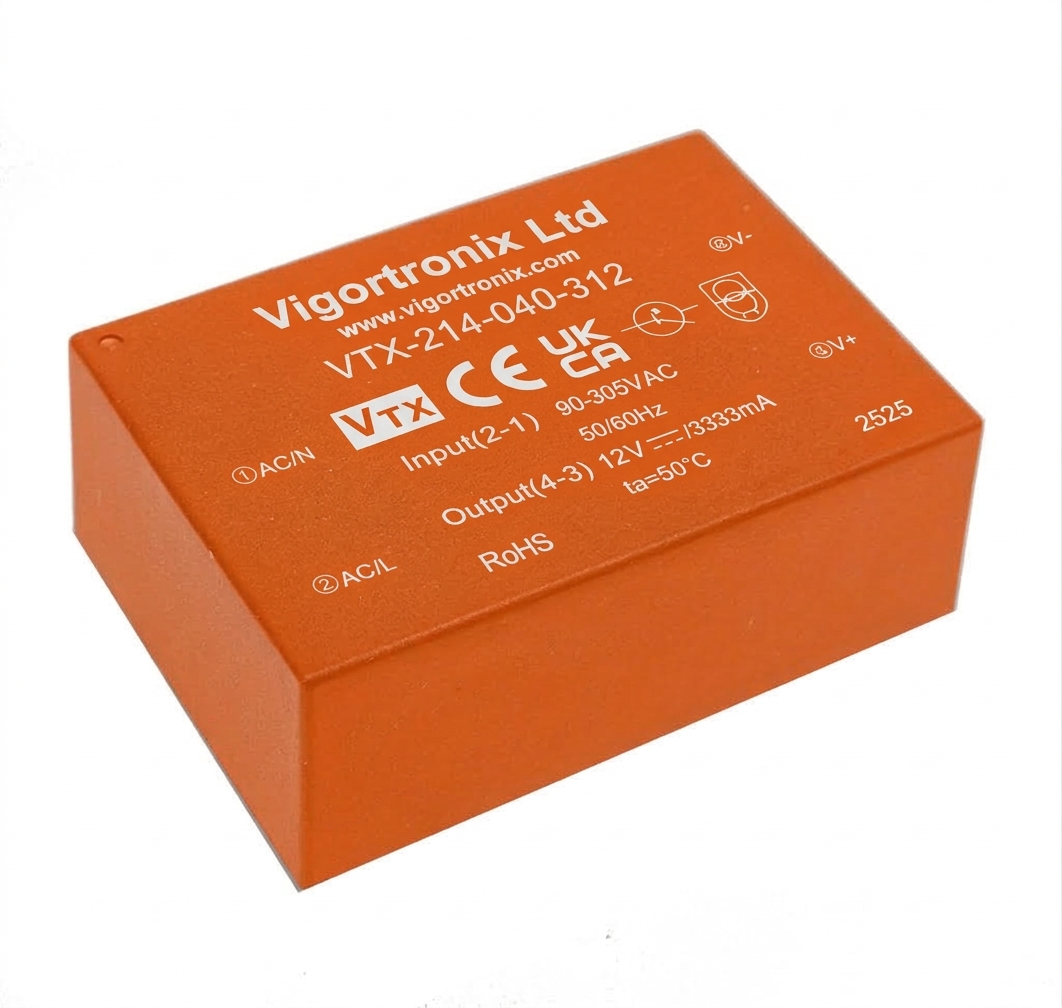

40 Watt AC-DC Converter (OVCIV)
- 40W Small Compact Size 61.1 x 45.6 x 23.5mm
- Wide AC & DC Input 90V to 305VAC (47~440Hz)
- Temperature Range -40OC to +85OC
- EMC Compliant without external components
- Over-voltage Category OVC IV (Meet EN62368)
- Output Range: 5V – 48VDC
- Low Standby Power <0.1W
- Fully Isolated Pri – Sec >5700Vrms
- Insulation: Class II
- Materials: UL94-V0
- Meet: IEC/EN/UL62368, EN61558, EN60335, IEC61010-1:2020
- 3 Year Warranty
Datasheet
40 Watt AC-DC Converter (OVCIV)
Description
| Part Number | Power Rating (Watt) | Output Voltage (VDC) | Output Current (mA) |
| VTX-214-040-305 | 35 | 5 | 7000 |
| VTX-214-040-312 | 40 | 12 | 3333 |
| VTX-214-040-315 | 40 | 15 | 2666 |
| VTX-214-040-324 | 40 | 24 | 1666 |
| VTX-214-040-348 | 40 | 48 | 833 |
