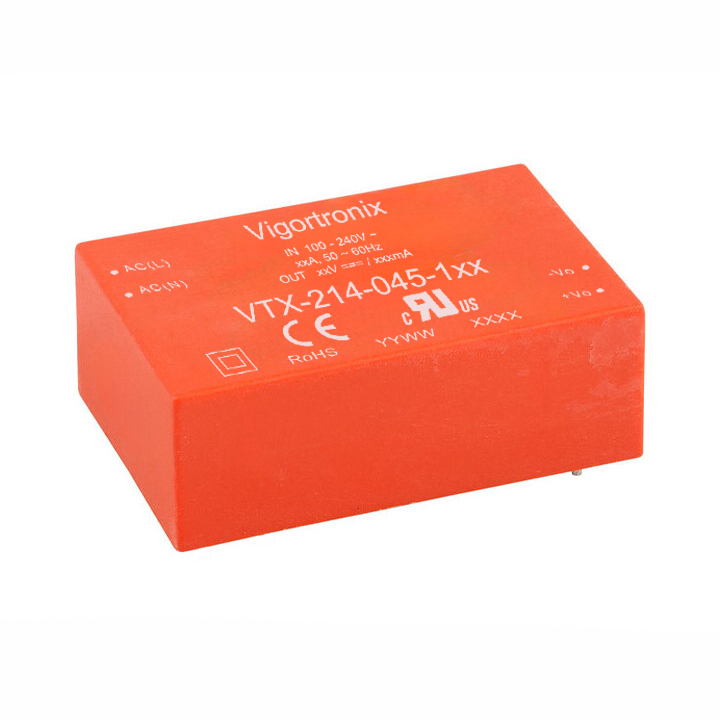

45 Watt Compact AC-DC Converter

Overview

• 45W Small Compact Size 87.0 x 52.0 x 29.5mm
• Wide AC & DC Input 85V to 264VAC
• Temperature Range -40°C to +70°C
• Output Range: 5V – 48VDC
• Low Standby Power <0.5W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368-1, EN61558-1 safety approval

Datasheet CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-045-1054058000
VTX-214-045-11245123750
VTX-214-045-11545153000
VTX-214-045-12445241875
VTX-214-045-1484548938
