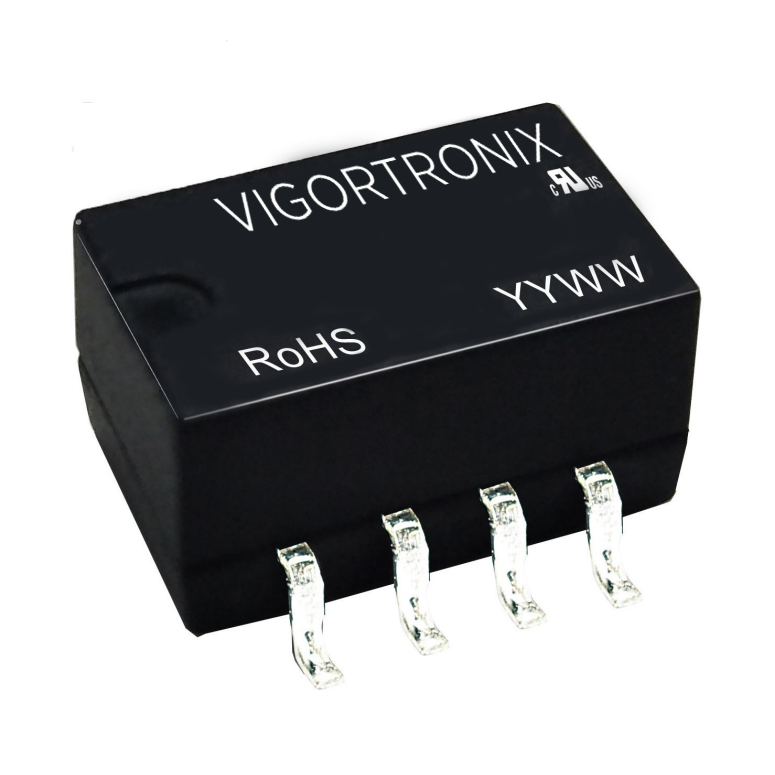

5 Vin DCDC Converter
- Continuous short-circuit protection
- No-load input current as low as 5 mA
- Operating ambient temperature range: -40℃ to +105℃
- High efficiency upto 83%
- Compact SMD package
- I/O isolation test voltage 1.5kVDC
- Industry-standard pin-out
Description
| Part Number | Power Rating (W) | Output Voltage (VDC) | Input Voltage (VDC) | Capacitive Load (uF) |
| VTX-322-001-0503 | 1 | 3.3 | 5 (4.5-5.5) | 2400 |
| VTX-322-001-0505 | 1 | 5 | 5 (4.5-5.5) | 2400 |
| VTX-322-001-0509 | 1 | 9 | 5 (4.5-5.5) | 1000 |
| VTX-322-001-0512 | 1 | 12 | 5 (4.5-5.5) | 560 |
| VTX-322-001-0515 | 1 | 15 | 5 (4.5-5.5) | 470 |
