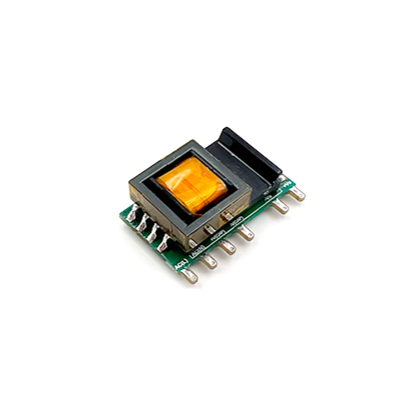

5 Watt SIP Open Ultra wide Input AC-DC Converter
- 5W Small Compact SIP style AC-DC converter
- Ultra Wide AC & DC Input 90V to 528VAC, 100-745VDC
- Temperature Range -40C to +85C
- Output Range: 3.3V – 24VDC
- Low Standby Power 0.1W
- Fully Isolated Pri – Sec >4000Vrms
- Safety: Class II
- Materials: UL94-V0
- IEC/EN/UL62368, IEC/EN61558, IEC/EN60335
- 3 Year Warranty
Datasheet
5 Watt SIP Open Ultra wide Input AC-DC Converter
Description
| Part Number | Power Rating (W) | Output Voltage (VDC) | Output Current (mA) | Capacitive Load (uF) |
| VTX-215-005-103 | 3.3 | 3.3 | 1000 | 2200 |
| VTX-215-005-105 | 5 | 5 | 1000 | 1500 |
| VTX-215-005-109 | 5 | 9 | 560 | 680 |
| VTX-215-005-112 | 5 | 12 | 420 | 470 |
| VTX-215-005-115 | 5 | 15 | 340 | 330 |
| VTX-215-005-124 | 5 | 24 | 210 | 100 |
