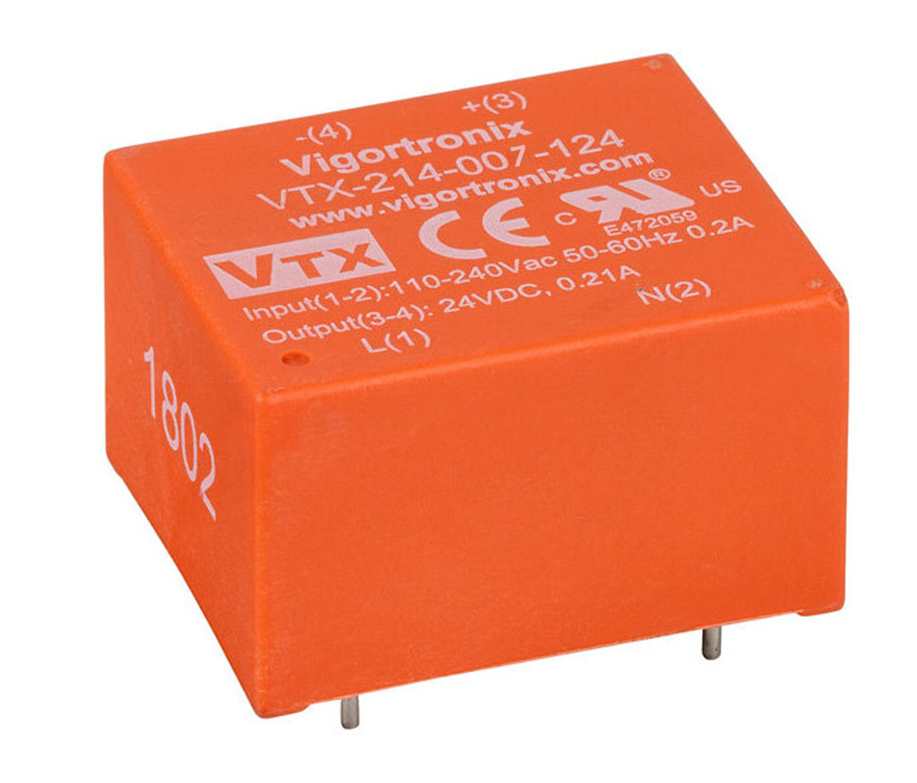

7 Watt AC-DC Converter (1 Series)

Overview

• 7W Small Compact Size
• Single Output – Regulated
• Output Range: 3.3V – 24VDC
• Low Standby Power <0.15W
• Fully Isolated Pri – Sec >4200Vrms
• Insulation: Class II
• Safety: EN61558, EN60950, CE CB

Datasheet CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-007-10373.32270
VTX-214-007-105751500
VTX-214-007-10979830
VTX-214-007-112712625
VTX-214-007-115715500
VTX-214-007-118718420
VTX-214-007-124724310
