Description
Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
---|---|---|---|
VTX-211-070-112 | 70 | 12 | 5000 |
VTX-211-070-124 | 70 | 24 | 3000 |
VTX-211-070-148 | 70 | 48 | 1500 |

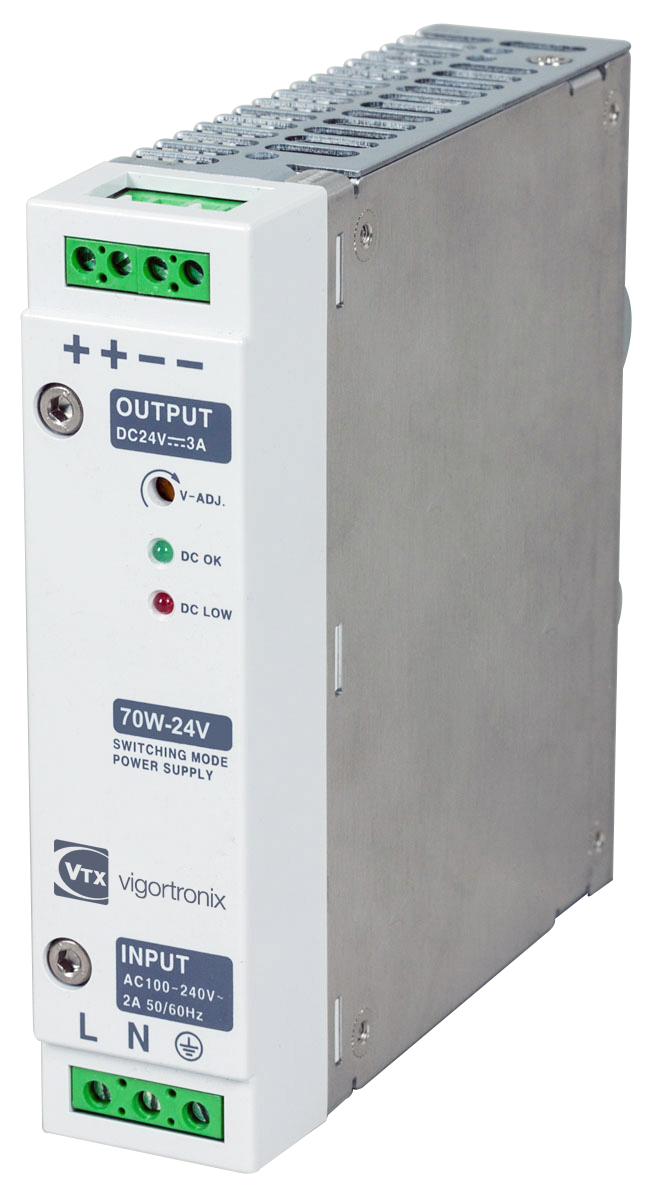

• 70W Single Output – Regulated
• Output Range: 12V – 48VDC
• Input: 90 – 264VAC , 47 – 63Hz
• Low Standby Power
• Fully Isolated Pri – Sec 3000Vrms
• 100% Full Burn-in Test
• LED Indicator DC On, DC Low
Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
---|---|---|---|
VTX-211-070-112 | 70 | 12 | 5000 |
VTX-211-070-124 | 70 | 24 | 3000 |
VTX-211-070-148 | 70 | 48 | 1500 |
