Description
| Part Number | Ratio | Primary Impedance (Ω) | Secondary Impedance (Ω) | Primary Series Impedance (Ω) | Secondary Series Impedance (Ω) |
|---|---|---|---|---|---|
| VTX-101-001 | 6.3+6.3 : 1+1 | 150 + 150 | 3.75 +3.75 | 600 | 15 |
| VTX-101-002 | 1+1 : 2+2 | 150 + 150 | 600 + 600 | 600 | 2.4k |
| VTX-101-003 | 1+1 : 6.45+6.45 | 150 + 150 | 6.25k +6.25k | 600 | 25k |
| VTX-101-006 | 1+1 : 1+1 | 150 + 150 | 150 + 150 | 600 | 600 |
| VTX-101-007 | 1+1 : 1+1 | 600 + 600 | 600 + 600 | 2.4k | 2.4k |

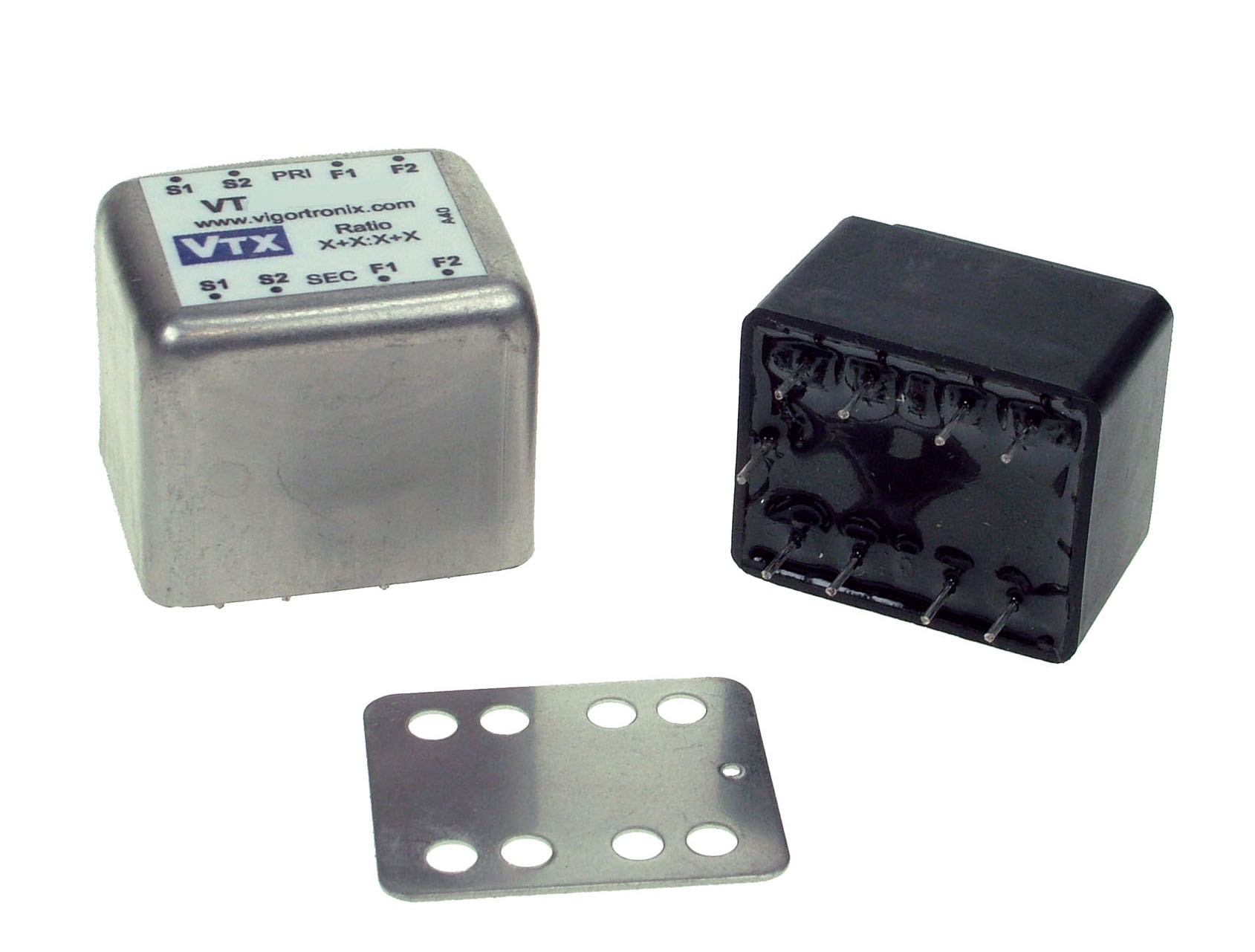

| Can Version: | |||||
| VTX-102-001 | 6.3+6.3 : 1+1 | 150 + 150 | 3.75 +3.75 | 600 | 15 |
| VTX-102-002 | 1+1 : 2+2 | 150 + 150 | 600 + 600 | 600 | 2.4k |
| VTX-102-003 | 1+1 : 6.45+6.45 | 150 + 150 | 6.25k +6.25k | 600 | 25k |
| VTX-102-006 | 1+1 : 1+1 | 150 + 150 | 150 + 150 | 600 | 600 |
| VTX-102-007 | 1+1 : 1+1 | 600 + 600 | 600 + 600 | 2.4k | 2.4k |
