Audio Minature
- High Quality Minature Audio Transformers
- Encapsulated PCB mounting
- Various winding ratios
- Impedance matching
- ULV0-94 rated materials
- RoHS & REACH Compliant
- Custom variations
Datasheet
Description
| Part Number | Ratio | Primary Impedance (Ω) | Secondary Impedance (Ω) |
| VTX-101-1601 | 1 CT:1 CT | 600 CT | 600 CT |
| VTX-101-1602 | 1:1 | 600 | 600 |
| VTX-101-1603 | 1:2 CT | 600 | 2.4K CT |

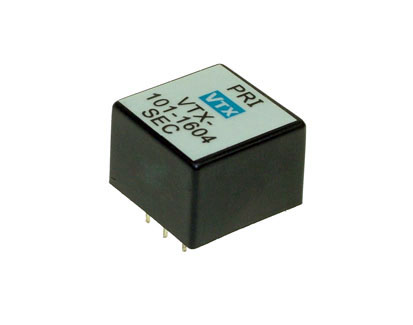

| VTX-101-1604 | 1:1 CT | 600 | 600 CT |
| VTX-101-1605 | 1:2 CT | 200 | 800 CT |
| VTX-101-1606 | 1:1 CT | 800 | 800 CT |
| VTX-101-1607 | 1:6.3 CT | 600 | 10K CT |
| VTX-101-1608 | 1 CT:1 CT | 10K CT | 10K CT |
| VTX-101-1609 | 1:1 CT | 10K | 10K CT |
| VTX-101-1613 | 1:2 CT | 600 | 2.4K CT |
| VTX-101-1614 | 1 : 4 | 600 | 10K |
| VTX-101-1617 | 4.07:1 | 10K | 600 |
| VTX-101-1634 | 1+1:2 | 150+150 | 600 |
| VTX-101-1650 | 1 : 19 | 6 | 2200 |
| VTX-101-1654 | 1:2 | 150 | 600 |
| VTX-101-1655 | 1:4.3 | 8 | 150 |
