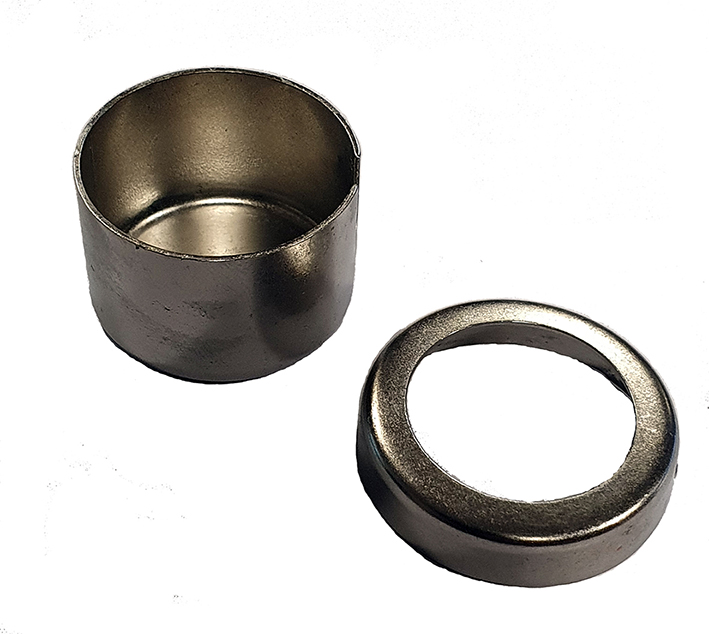

Round Can

Overview

  • All Circular cans available with inside or outside fitting lids
  • Tolerances +/- 0.25mm (0.010″)
  • These cans are our current range, however, we are constantly extending our range and it may be possible to manufacture your particular requirements from our standard tooling
  • Piercing/drilling of holes and cutouts can be made as required
  • The can depth depicted in the table is the maximum available. This depth can be adjusted to suit your requirements.
Datasheet

Description

Part Number Internal Diameter (mm) Depth (mm) Max Deep Drawn or Spun Thickness Nominal (mm)
CAN005 48.9 24.0 Deep Drawn 0.8
CAN006 30.2 47 (Standard 24.0) Deep Drawn 0.8
CAN010 19.0 19.0 Deep Drawn 0.8
CAN011 24.4 19.3 Deep Drawn 0.8
CAN012 39.0 52.0 Deep Drawn 0.8
CAN013 33.3 27.0 Spun 0.8
CAN014 59.0 65.0 Spun 0.8
CAN015 88.0 44.0 Spun 0.8
