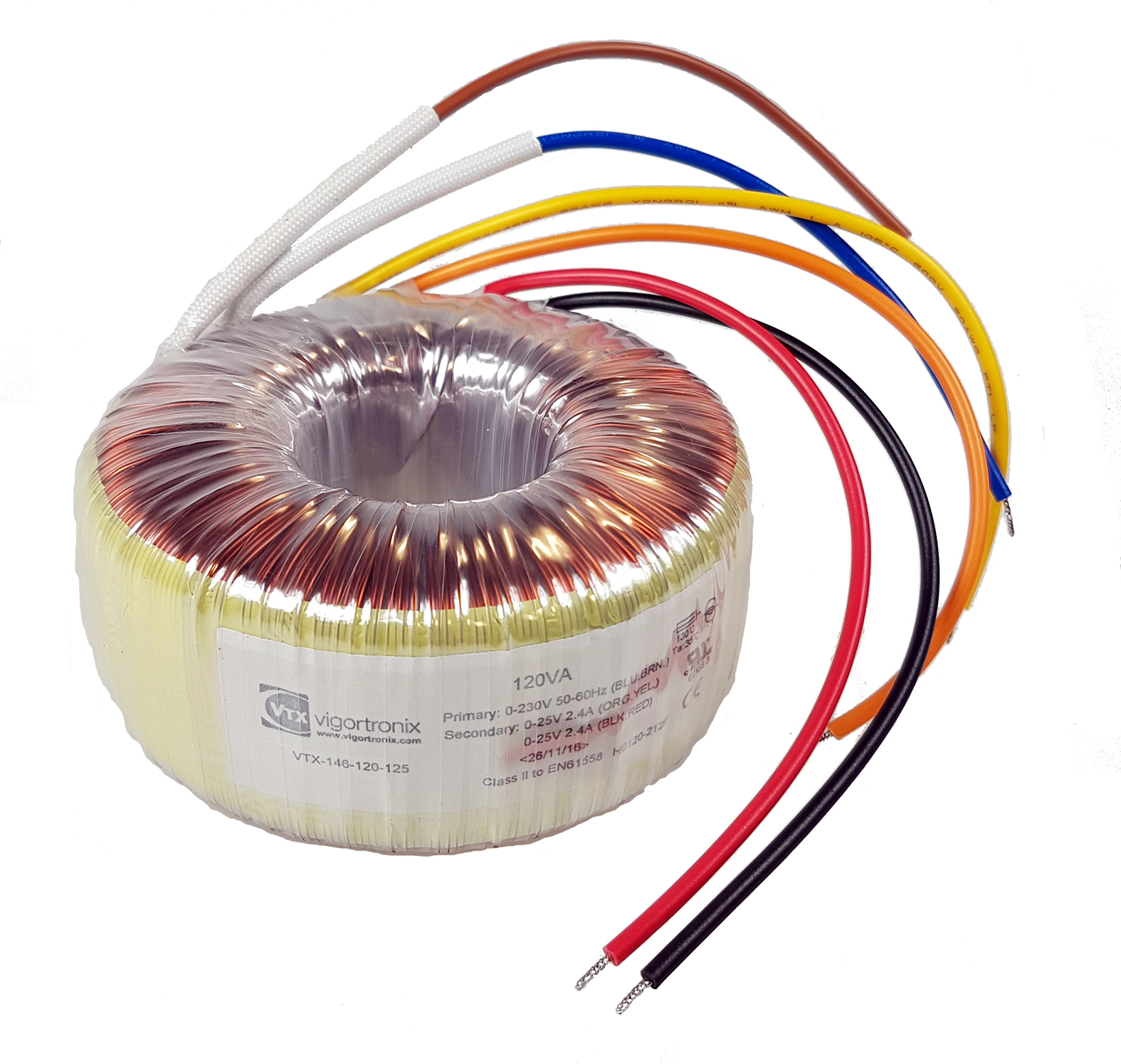

Single Primary Toroidal 230V
- UL Approved
- Input: 0-230Vac
- High Quality Open Style Toroidal Transformer
- Single Primary/ Dual Secondary windings
- Very low level radiated magnetic field.

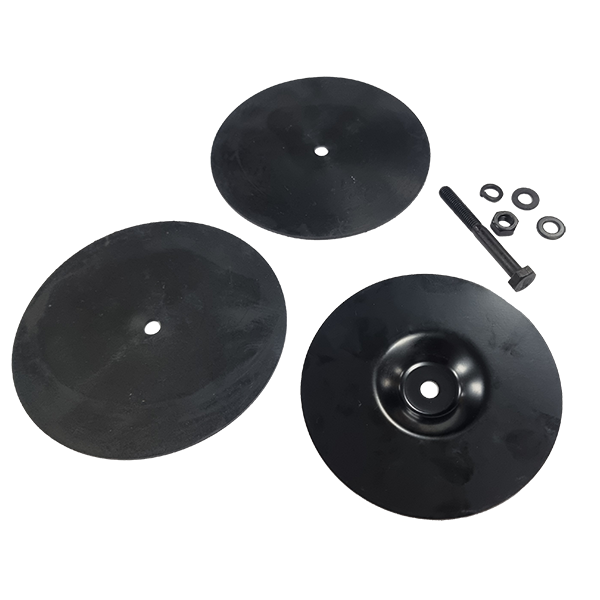

- Supplied with mounting Kit
- Dielectric strength: 4200Vrms 100% tested
- Compliant Standards, EN61558, EN60950, UL, C-UL and CE
Datasheet
Single Primary Toroidal 230V
Description
| Part Number | Power Rating | Output Voltage (VAC) | Output Current (A) |
| VTX-146-015-106 | 15 | 2 x 6 | 1.25 |
| VTX-146-015-109 | 15 | 2 x 9 | 0.83 |
| VTX-146-015-112 | 15 | 2 x 12 | 0.63 |
| VTX-146-015-115 | 15 | 2 x 15 | 0.5 |
| VTX-146-015-118 | 15 | 2 x 18 | 0.42 |
| VTX-146-015-124 | 15 | 2 x 24 | 0.32 |
| VTX-146-015-125 | 15 | 2 X 25 | 0.31 |
| VTX-146-030-106 | 30 | 2 x 6 | 2.5 |
| VTX-146-030-109 | 30 | 2 x 9 | 1.67 |
| VTX-146-030-112 | 30 | 2 x 12 | 1.25 |
| VTX-146-030-115 | 30 | 2 x 15 | 1 |
| VTX-146-030-118 | 30 | 2 x 18 | 0.83 |
| VTX-146-030-124 | 30 | 2 x 24 | 0.625 |
| VTX-146-030-125 | 30 | 2 x 25 | 0.6 |
| VTX-146-050-106 | 50 | 2 x 6 | 4.17 |
| VTX-146-050-109 | 50 | 2 x 9 | 2.78 |
| VTX-146-050-112 | 50 | 2 x 12 | 2.08 |
| VTX-146-050-115 | 50 | 2 x 15 | 1.67 |
| VTX-146-050-118 | 50 | x 18 | 1.39 |
| VTX-146-050-124 | 50 | x 24 | 1.04 |
| VTX-146-050-125 | 50 | x 25 | 1 |
| VTX-146-050-155 | 50 | x 55 | 0.45 |
| VTX-146-080-109 | 80 | 2 x 9 | 4.44 |
| VTX-146-080-112 | 80 | x 12 | 3.33 |
| VTX-146-080-115 | 80 | 2 x 15 | 2.67 |
| VTX-146-080-118 | 80 | 2 x 18 | 2.22 |
| VTX-146-080-124 | 80 | 2 x 24 | 2.5 |
| VTX-146-080-125 | 80 | X 25 | 1.6 |
| VTX-146-080-155 | 80 | X 55 | 0.73 |
| VTX-146-120-112 | 120 | 2 x 12 | 5 |
| VTX-146-120-115 | 120 | 2 x 15 | 4 |
| VTX-146-120-118 | 120 | 2 x 18 | 3.33 |
| VTX-146-120-124 | 120 | 2 x 24 | 2.5 |
| VTX-146-120-125 | 120 | 2 x 25 | 2.4 |
| VTX-146-120-155 | 120 | 2 x 55 | 1.09 |
| VTX-146-160-112 | 160 | 2 x 12 | 6.67 |
| VTX-146-160-115 | 160 | 2 x 15 | 5.33 |
| VTX-146-160-118 | 160 | 2 x 18 | 4.44 |
| VTX-146-160-124 | 160 | 2 x 24 | 3.33 |
| VTX-146-160-125 | 160 | 2 x 25 | 3.2 |
| VTX-146-160-130 | 160 | 2 x 30 | 2.67 |
| VTX-146-160-155 | 160 | 2 x 55 | 1.45 |
| VTX-146-225-112 | 225 | 2 x 12 | 9.38 |
| VTX-146-225-115 | 225 | 2 x 15 | 7.5 |
| VTX-146-225-118 | 225 | 2 x 18 | 6.3 |
| VTX-146-225-124 | 225 | 2 x 24 | 4.68 |
| VTX-146-225-125 | 225 | 2 x 25 | 4.5 |
| VTX-146-225-130 | 225 | 2 x 30 | 3.75 |
| VTX-146-225-155 | 225 | 2 x 55 | 2.05 |
| VTX-146-250-112 | 250 | 2 x 12 | 10.42 |
| VTX-146-250-115 | 250 | 2 x 15 | 8.33 |
| VTX-146-250-118 | 250 | 2 x 18 | 6.95 |
| VTX-146-250-124 | 250 | 2 x 24 | 5.2 |
| VTX-146-250-125 | 250 | 2 x 25 | 5 |
| VTX-146-250-130 | 250 | 2 x 30 | 4.16 |
| VTX-146-250-155 | 250 | 2 x 55 | 2.27 |
| VTX-146-300-124 | 300 | 2 x 24 | 6.25 |
| VTX-146-300-125 | 300 | 2 x 25 | 6 |
| VTX-146-300-130 | 300 | 2 x 30 | 5 |
| VTX-146-300-135 | 300 | 2 x 35 | 4.28 |
| VTX-146-300-155 | 300 | 2 X 55 | 2.73 |
| VTX-146-500-124 | 500 | 2 x 24 | 10.4 |
| VTX-146-500-125 | 500 | 2 x 25 | 10 |
| VTX-146-500-130 | 500 | 2 x 30 | 8.33 |
| VTX-146-500-135 | 500 | 2 x 35 | 7.14 |
| VTX-146-500-140 | 500 | 2 x 40 | 6.25 |
| VTX-146-500-145 | 500 | 2 x 45 | 5.56 |
| VTX-146-500-150 | 500 | 2 x 50 | 5 |
| VTX-146-500-155 | 500 | 2 x 55 | 4.55 |
| VTX-146-625-124 | 625 | 2 x 24 | 13 |
| VTX-146-625-125 | 625 | 2 x 25 | 12.5 |
| VTX-146-625-140 | 625 | 2 x 40 | 7.8 |
| VTX-146-625-145 | 625 | 2 X 45 | 6.95 |
| VTX-146-625-150 | 625 | 2 x 50 | 6.25 |
| VTX-146-625-155 | 625 | 2 x 55 | 5.68 |
| VTX-146-800-125 | 800 | 2 x 25 | 16 |
| VTX-146-800-140 | 800 | 2 x 40 | 10 |
| VTX-146-800-145 | 800 | 2 x 45 | 8.88 |
| VTX-146-800-150 | 800 | 2 x 50 | 8 |
| VTX-146-800-155 | 800 | 2 x 55 | 7.27 |
| VTX-146-1000-125 | 1000 | 2 x 25 | 20 |
| VTX-146-1000-140 | 1000 | 2 x 40 | 12.5 |
| VTX-146-1000-145 | 1000 | 2 x 45 | 11.11 |
| VTX-146-1000-150 | 1000 | 2 x 50 | 10 |
| VTX-146-1000-155 | 1000 | 2 x 55 | 9.09 |
| | | |
