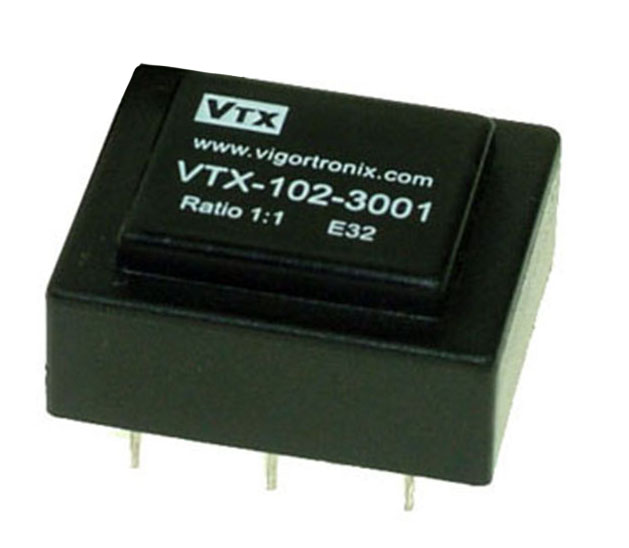

VTX-102-3001

Overview

  • High Quality Audio Transformer
  • Turns Ratio:  1:1
  • Inter-wind capacitance measured @ 1kHz, 0.3V: 109pF nominal
  • C.M.R.R 10kHz, 0db <60db
  • Frequency Range: 20Hz to 30KHz
  • Very low THD <0.1% @ 30Hz
  • Mumetal Shielding can available.
Datasheet

Description

Part NumberDCR (Ω)Winding RatioInductance Primary (H)Inductance Secondary (H)
VTX-102-3001301:13.23.2
