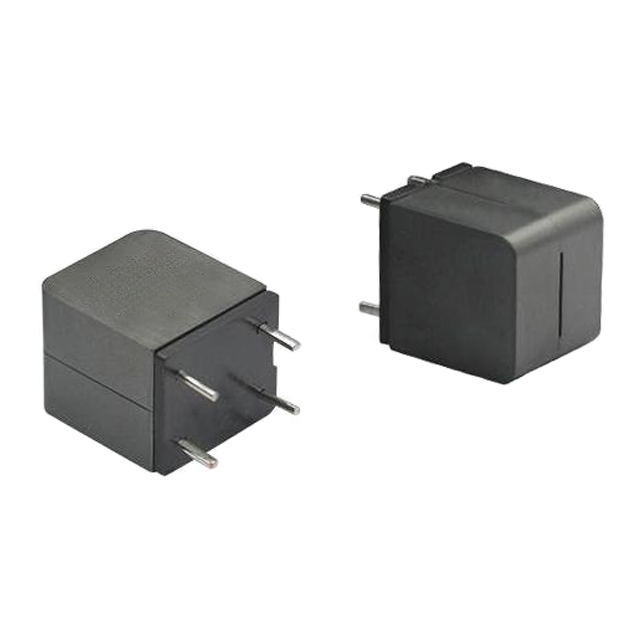

VTX-510-2320

Overview

  •  Magnetic shielded structure: excellent resistance
    to electromagnetic interference(EMI)
  • Assemblage design, sturdy structure
  • High inductance, high current, low magnetic loss,
    low ESR, small parasitic capacitance.
  • High temperature wire, closed magnetic circuit,
    ultra low buzz noise.
  • Operating temperature : -40 +125
    (Including coil’s temperature rise)
Datasheet

Description

Part NumberInductance (uH)D.C.R. (mΩ)Saturation Current (A)Temperature Rise Current (A)
VTX-510-2320-7R077.8 (9.6 Max)5514
VTX-510-2320-100107.8 (9.6 Max)4314
VTX-510-2320-120127.8 (9.6 Max)3614
VTX-510-2320-150157.8 (9.6 Max)3114
VTX-510-2320-180187.8 (9.6 Max)2614
VTX-510-2320-220227.8 (9.6 Max)2214
VTX-510-2320-330337.8 (9.6 Max)1214
