10 Watt AC-DC Converter (3 Series)

Overview

• 10W Small Compact Size 37.0 x 27.5 x 20.0mm
• Wide AC & DC Input 90V to 305VAC, 120V to 430VDC
• Temperature Range -40OC to +70OC
• EMC Compliant without external components
• Over-voltage Category OVC III
• Output Range: 3.3V – 24VDC
• Low Standby Power <0.1W
• Fully Isolated Pri – Sec >4200Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558, EN60335
• 3 Year Warranty

Datasheet CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-010-303103.33000
VTX-214-010-3051052000
VTX-214-010-3091091100
VTX-214-010-3121012833

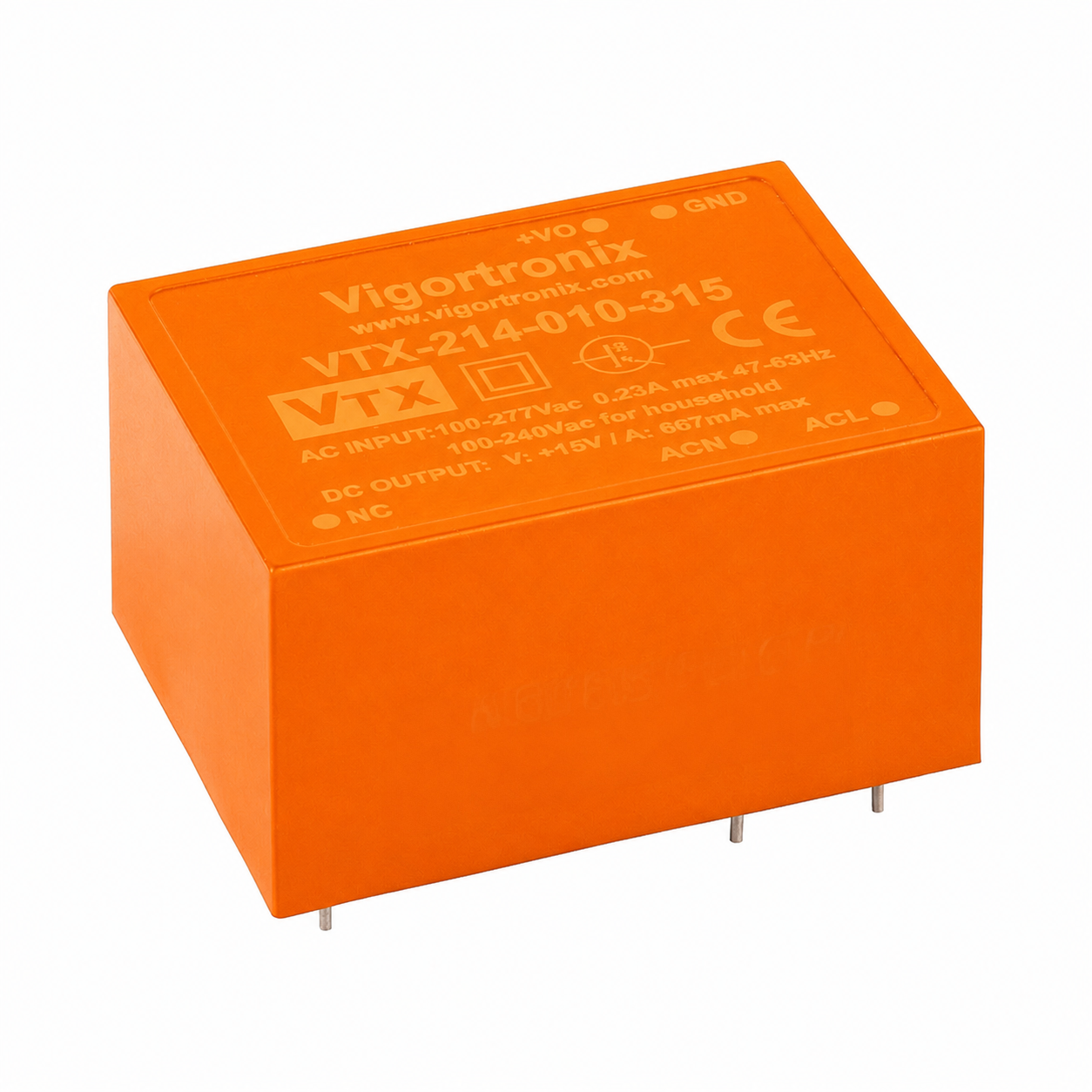

VTX-214-010-3151015667
VTX-214-010-3181018555
VTX-214-010-3241024410
