Description
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-214-010-503 | 10 | 3.3 | 3030 |
| VTX-214-010-505 | 10 | 5 | 2000 |
| VTX-214-010-509 | 10 | 9 | 1111 |
| VTX-214-010-512 | 10 | 12 | 833 |
| VTX-214-010-515 | 10 | 15 | 667 |
| VTX-214-010-524 | 10 | 24 | 417 |

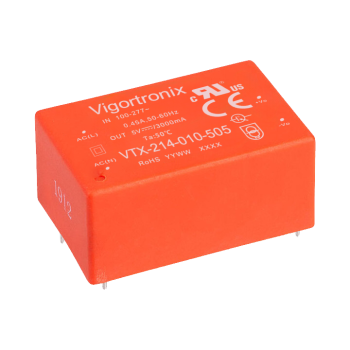

10 Watt Compact Converter (5 Series)
Overview
• 10W Small Compact Size 47.6 x 26.8 x 23.5mm
• Wide AC & DC Input 85V to 305VAC
• Temperature Range -40OC to +85OC
• EMC Compliant without external components
• Over-voltage Category OVC III
• Output Range: 3.3V – 24VDC
• Low Standby Power <0.1W
• Fully Isolated Pri – Sec >4200Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558, EN60335, IEC60601-1
(2xMOPP)
• 3 Year Warranty
