15 Watt High Performance AC-DC Converter (2 Series)

Overview

• 15W Single Output – Regulated
• Output Range: 5.1V – 24VDC
• Wide Input: 90 – 305VAC , 47 – 440Hz
• Low Standby Power <0.1W
• Height 23.5mm
• Fully Isolated Pri – Sec 4000Vrms
• EMC Compliant, No external components needed
• Materials: UL94-V0
• Safety: UL/IEC/EN62368-1, EN60335-1, CE,

Datasheet CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-015-205155.13000
VTX-214-015-207157.52000
VTX-214-015-2091591660
VTX-214-015-21215121250
VTX-214-015-21515151000

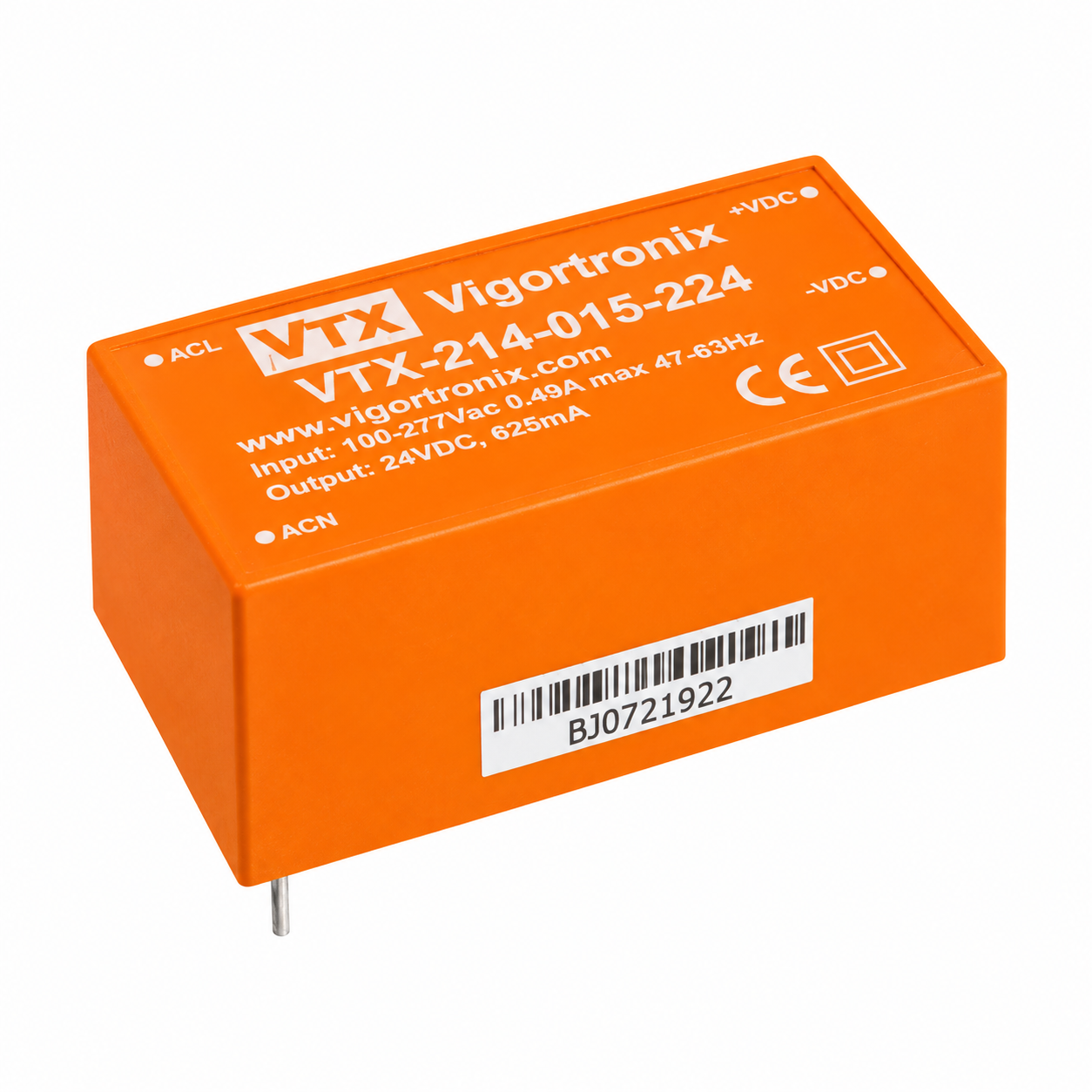

VTX-214-015-2241524625
