Description
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-214-015-205M | 15 | 5 | 3000 |
| VTX-214-015-209M | 15 | 9 | 1660 |
| VTX-214-015-212M | 15 | 12 | 1250 |
| VTX-214-015-215M | 15 | 15 | 1000 |
| VTX-214-015-224M | 15 | 24 | 625 |

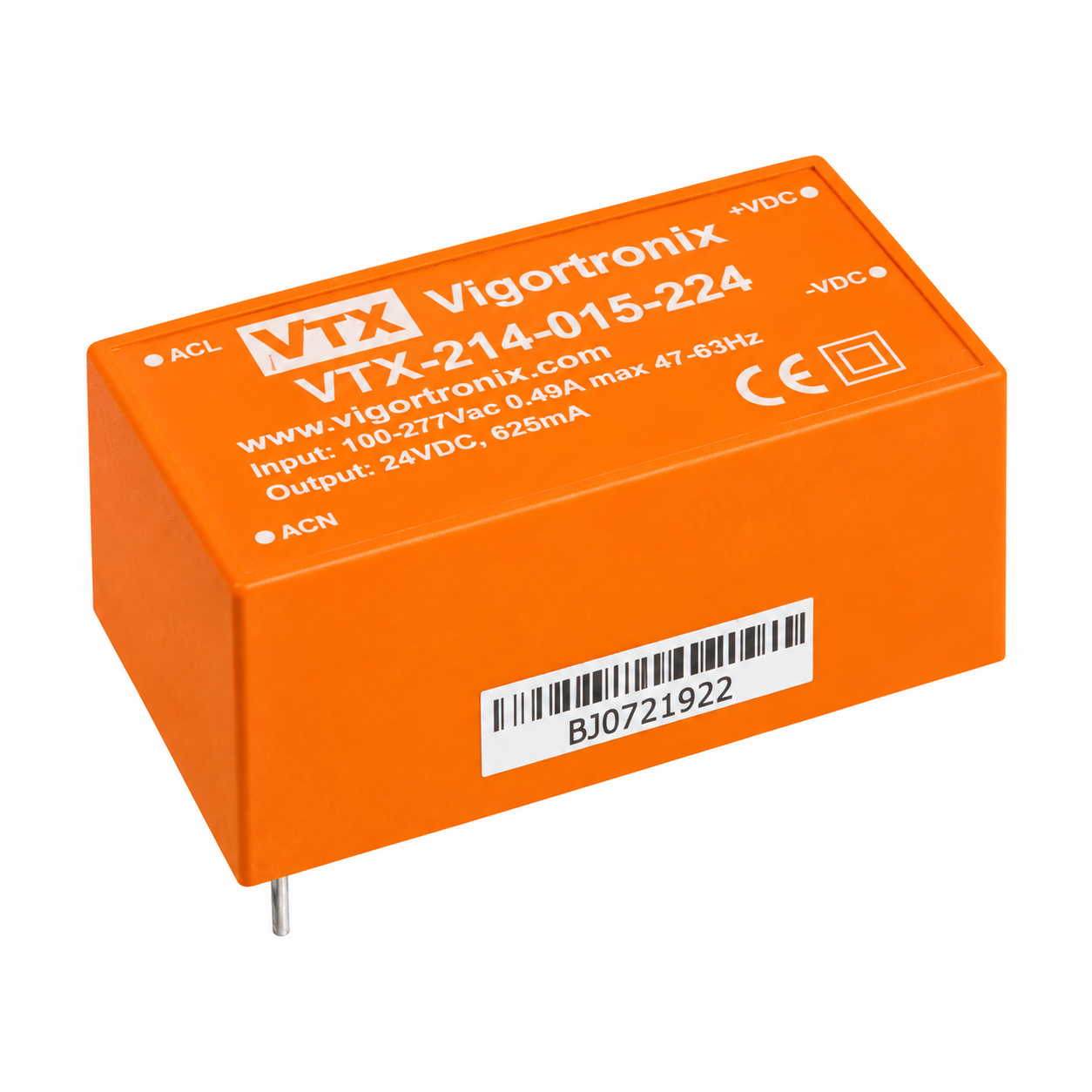

15 Watt Medical AC-DC Converter (2 Series)
Overview
• 15W Single Output – Regulated
• Output Range: 5.0V – 24VDC
• Wide Input: 90 – 264VAC , 47 – 440Hz
• Low Standby Power <0.1W
• Height 23.5mm
• Fully Isolated Pri – Sec 4000Vrms
• EMC Compliant, No external components needed
• Materials: UL94-V0
• Safety: UL/IEC/EN62368-1, EN60335-1, CE,
