Description
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-214-015-503 | 13.2 | 3.3 | 4000 |
| VTX-214-015-505 | 15 | 5 | 3000 |
| VTX-214-015-509 | 15 | 9 | 1667 |
| VTX-214-015-512 | 15 | 12 | 1250 |
| VTX-214-015-515 | 15 | 15 | 1000 |
| VTX-214-015-524 | 15 | 24 | 625 |

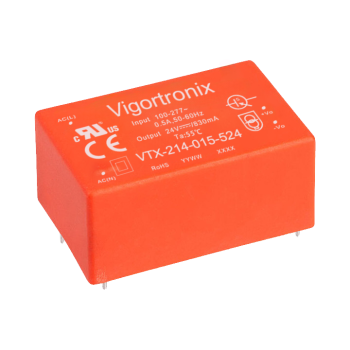

15 Watt Compact Converter (5 Series) MEANWELL Alternative
Overview
• 15W Small Compact Size 52.4 x 27.2 x 24.0mm
• Wide AC & DC Input 85V to 305VAC
• Temperature Range -40OC to +85OC
• EMC Compliant without external components
• Output Range: 3.3V – 24VDC
• Low Standby Power <0.1W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558, EN60335, IEC60601-1
(2xMOPP)
• 3 Year Warranty
