Description
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-214-015-603 | 13.2 | 3.3 | 4000 |
| VTX-214-015-605 | 15 | 5 | 3000 |
| VTX-214-015-609 | 15 | 9 | 1667 |
| VTX-214-015-612 | 15 | 12 | 1250 |
| VTX-214-015-615 | 15 | 15 | 1000 |
| VTX-214-015-624 | 15 | 24 | 625 |

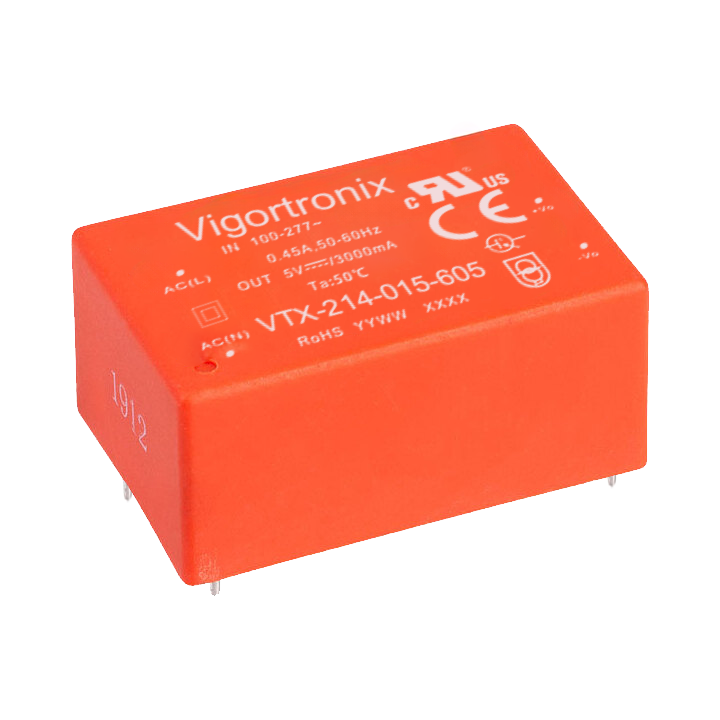

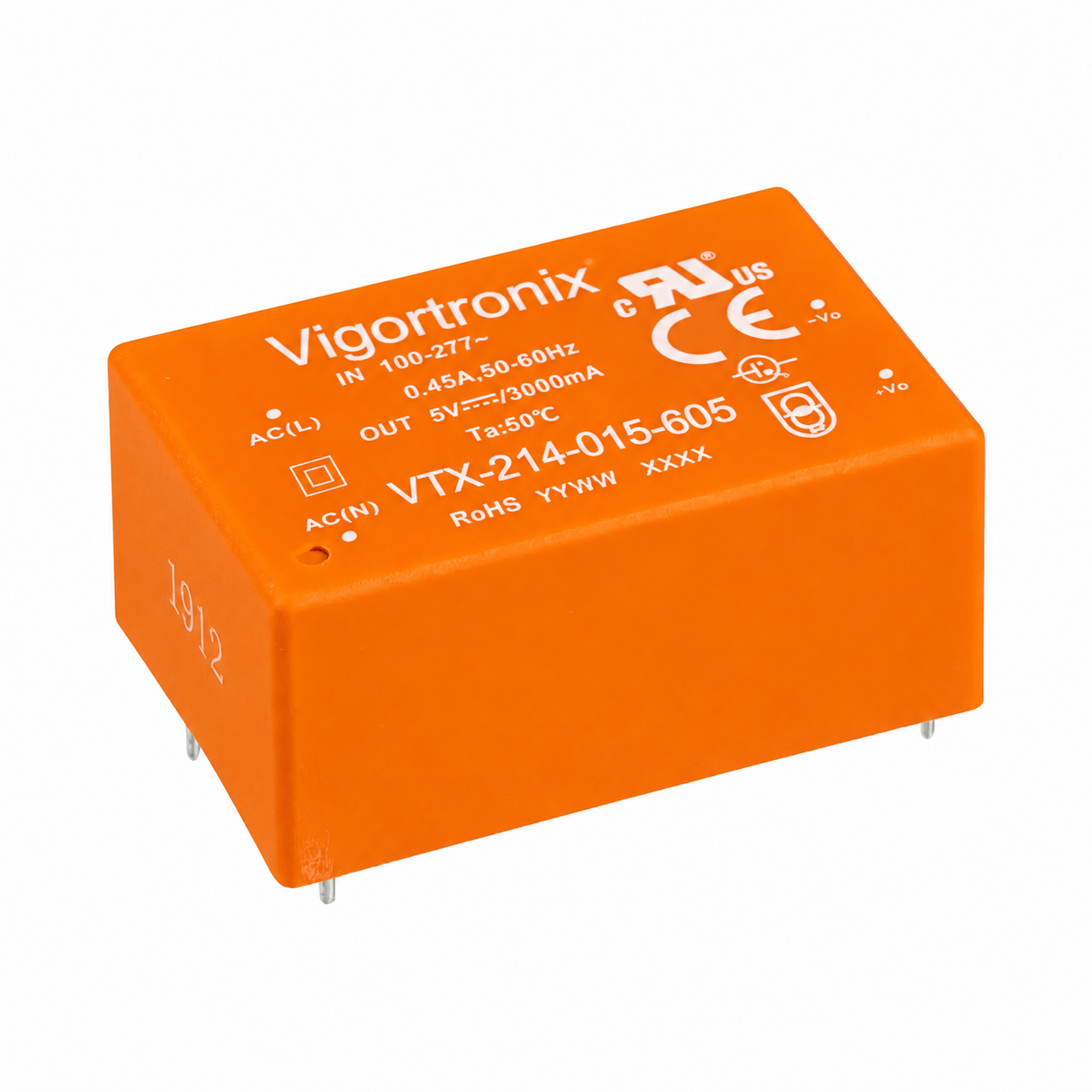

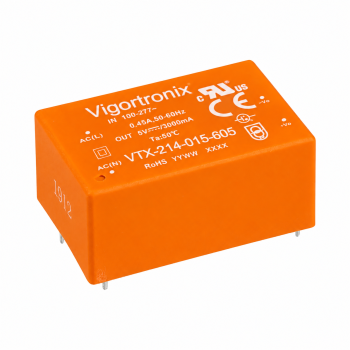

15 Watt Compact Converter (6 Series)
Overview
• 15W Small Compact Size 47.6 x 26.8 x 23.5mm
• Wide AC & DC Input 85V to 305VAC
• Temperature Range -40OC to +85OC
• Over-voltage Category OVC III
• Output Range: 3.3V – 24VDC
• Low Standby Power <0.1W
• Fully Isolated Pri – Sec >4200Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/UL/EN62368, EN61558, EN60335
