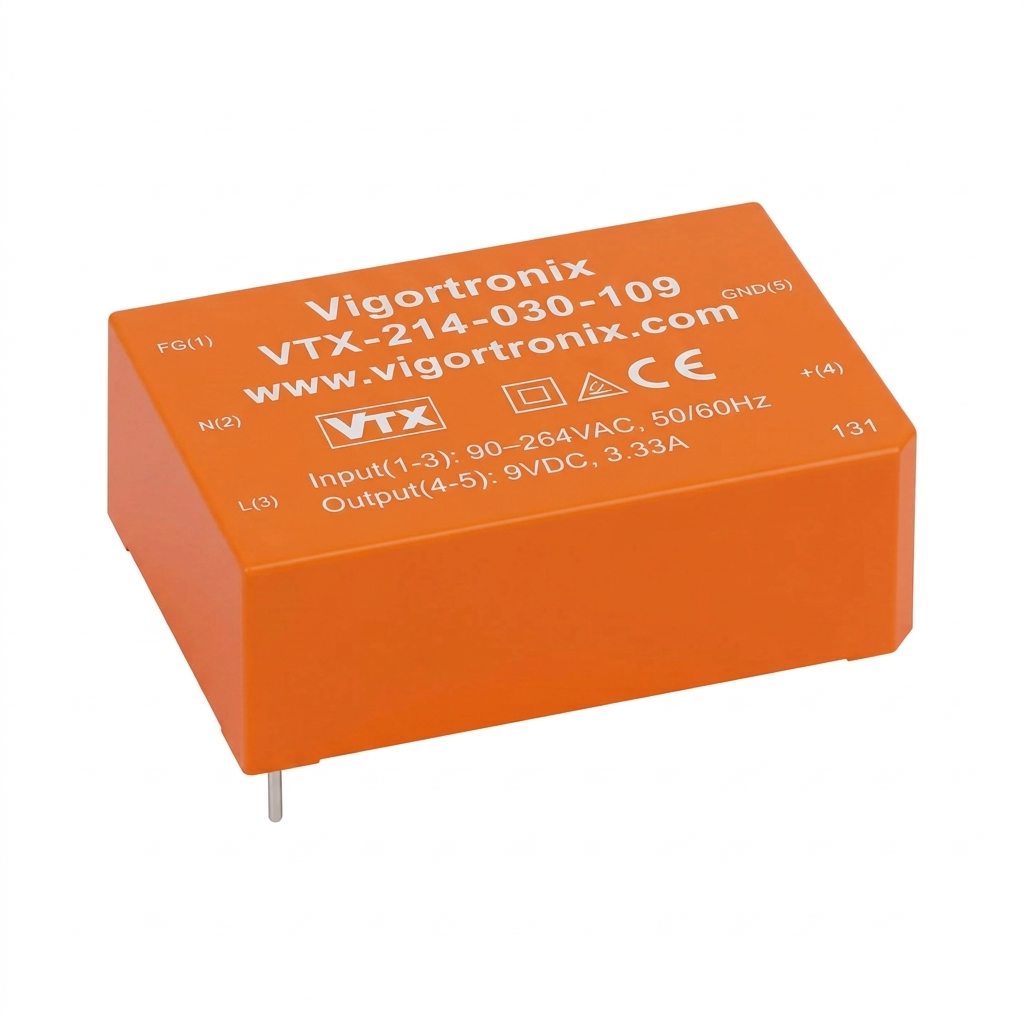

30 Watt AC-DC Converter (1 Series)

Overview

• 30W Small Compact Size
• Single Output – Regulated
• Output Range: 3.3V – 48VDC
• Input: 90 – 265VAC , 47 – 63Hz (100 – 370VDC)
• Low Standby Power <0.3W
• Low Ripple & Noise
• Encapsulated Design
• Fully Isolated Pri – Sec >4200Vrms
• Materials: UL94-V0
• Safety: EN61558, EN60950, CE

Datasheet CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-030-103303.39000
VTX-214-030-1053056000
VTX-214-030-1063065000
VTX-214-030-107307.54000
VTX-214-030-1093093333
VTX-214-030-11230122500
VTX-214-030-11530152000
VTX-214-030-11830181666
VTX-214-030-12430241250
VTX-214-030-1483048625
