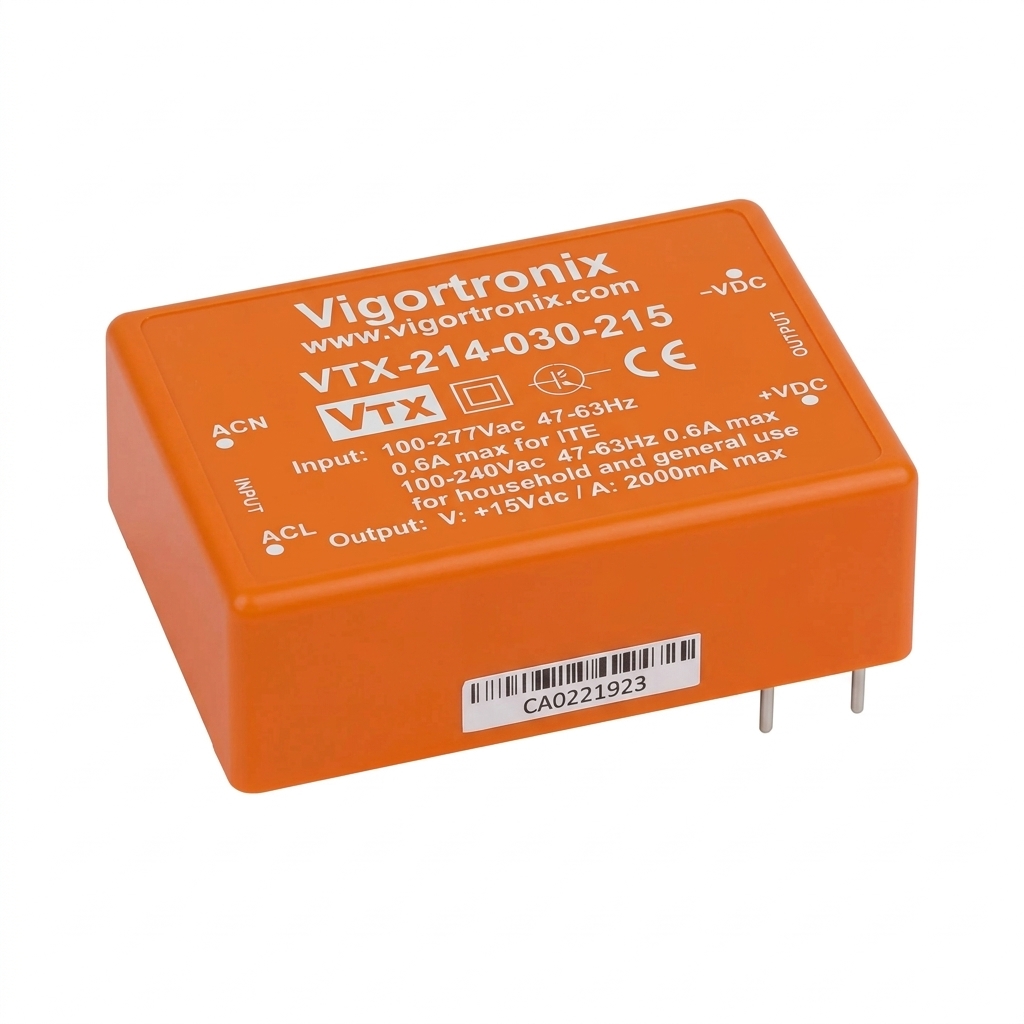

VTX-214-030-2xx

30 Watt AC-DC Converter (2 Series)

Overview

• 30W Single Output – Regulated
• Output Range: 5.1V – 24VDC
• Input: 90 – 305VAC , 47 – 440Hz
• Low Standby Power <0.1W
• Height 21.7mm
• Fully Isolated Pri – Sec 4000Vrms
• EMC Compliant without external components
• Materials: UL94-V0
• Safety: UL/IEC/EN62368-1, EN60335-1, CE,

Datasheet CAD File

Description

Description

Part Number	Power Rating	Output Voltage (VDC)	Output Current (mA)
VTX-214-030-205	23	5.1	4600
VTX-214-030-207	30	7.5	4000
VTX-214-030-209	30	9	3333
VTX-214-030-212	30	12	2500
VTX-214-030-215	30	15	2000
VTX-214-030-224	30	24	1250
