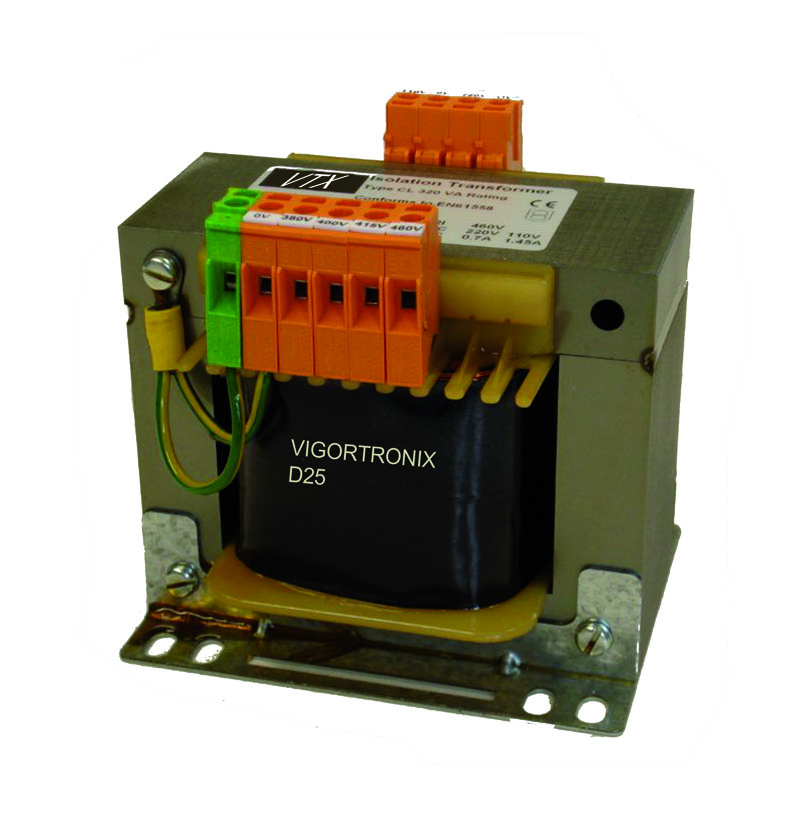

400VA Control Panel Transformer
- Made in the UK
- Multi-tapped Primary
- Earth Screen between Primary and Secondary
- Frequency 50/60Hz
- Safety Class 1
- Temperature Class: – Class B (130ºC)
- Screw termials to IP20, (Touch Proof)
- Dielectric Strength: 3000Vrms
- Mounting Brackets to Din 41307
- Manufactured and tested in accordance to EN61558-2-2, EN60742, CE
Datasheet
400VA Control Panel Transformer
SKU: 69792a681aec
Description
| VA Rating |
Part Number |
Output Voltage (Vac) |
| 400 |
VTX-176-400-024 |
0 – 24V |
| 400 |
VTX-176-400-048 |
0 – 48V |
| 400 |
VTX-176-400-110 |
110V (55V-0-55V) |
| 400 |
VTX-176-400-230 |
0 – 230V |
