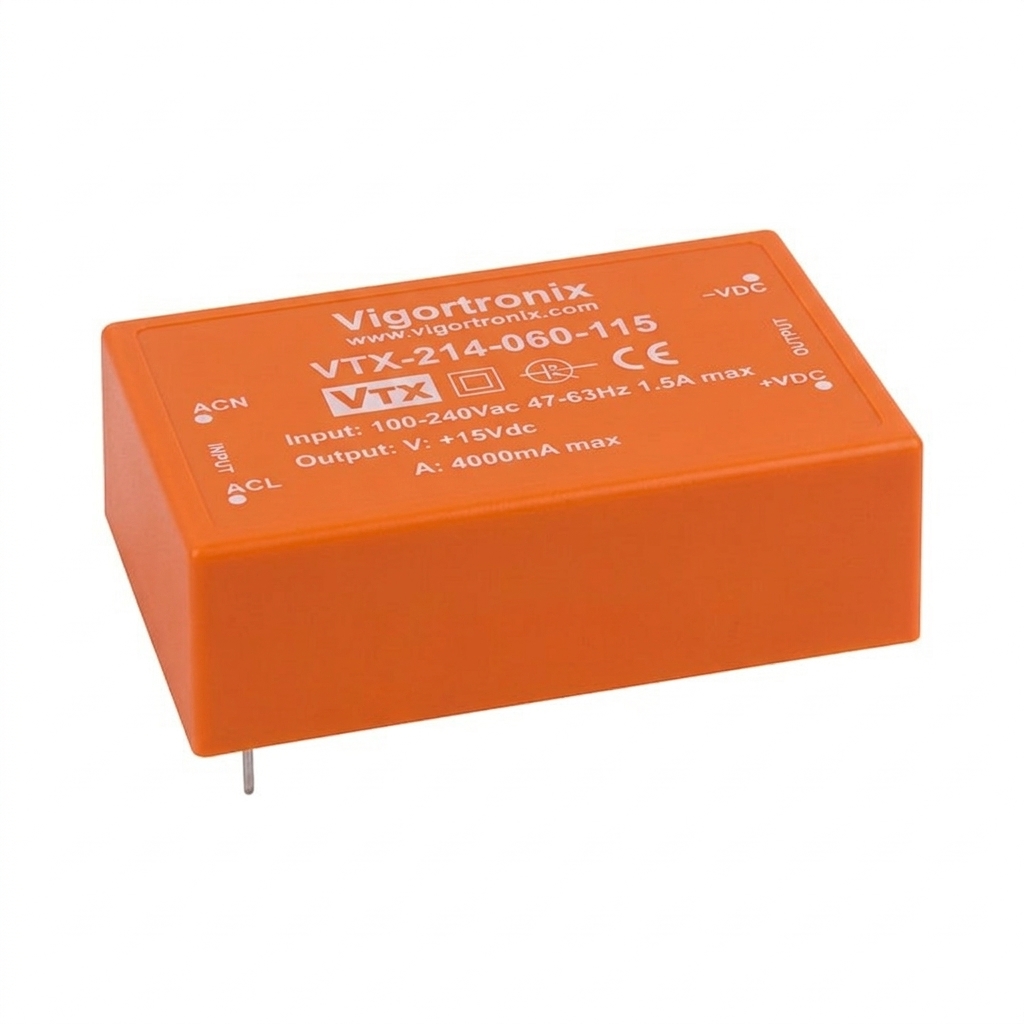

VTX-214-060-xxx

60 Watt AC-DC Converter (1 Series)

Overview

• 60W Single Output – Regulated
• Output Range: 12V – 24VDC
• Input: 90 – 264VAC , 47 – 440Hz
• Low Standby Power <0.1W
• Height 23.1mm
• Fully Isolated Pri – Sec 4000Vrms
• EMC Compliant without external components
• Materials: UL94-V0
• Safety: UL/IEC/EN62368-1, EN60335-1, CE,

Datasheet CAD File

Description

Description

Part Number	Power Rating	Output Voltage (VDC)	Output Current (mA)
VTX-214-060-112	60	12	5000
VTX-214-060-115	60	15	4000
VTX-214-060-124	60	24	2500
