Description
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-214-060-205 | 50 | 5 | 10000 |
| VTX-214-060-209 | 60 | 9 | 6660 |
| VTX-214-060-212 | 60 | 12 | 5000 |
| VTX-214-060-215 | 60 | 15 | 4000 |
| VTX-214-060-224 | 60 | 24 | 2500 |
| VTX-214-060-248 | 60 | 48 | 1250 |

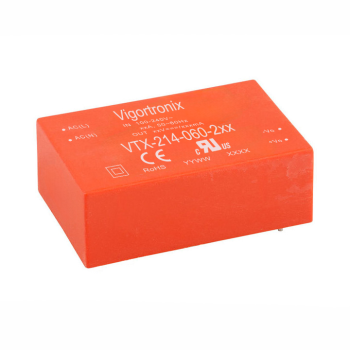

60 Watt Compact AC-DC Converter (2 Series)
Overview
• 60W Small Compact Size 87.0 x 52.0 x 29.5mm
• Wide AC & DC Input 85V to 264VAC
• Temperature Range -40OC to +70OC
• Output Range: 3.3V – 48VDC
• Low Standby Power <0.5W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368-1, EN61558-1 safety approval
