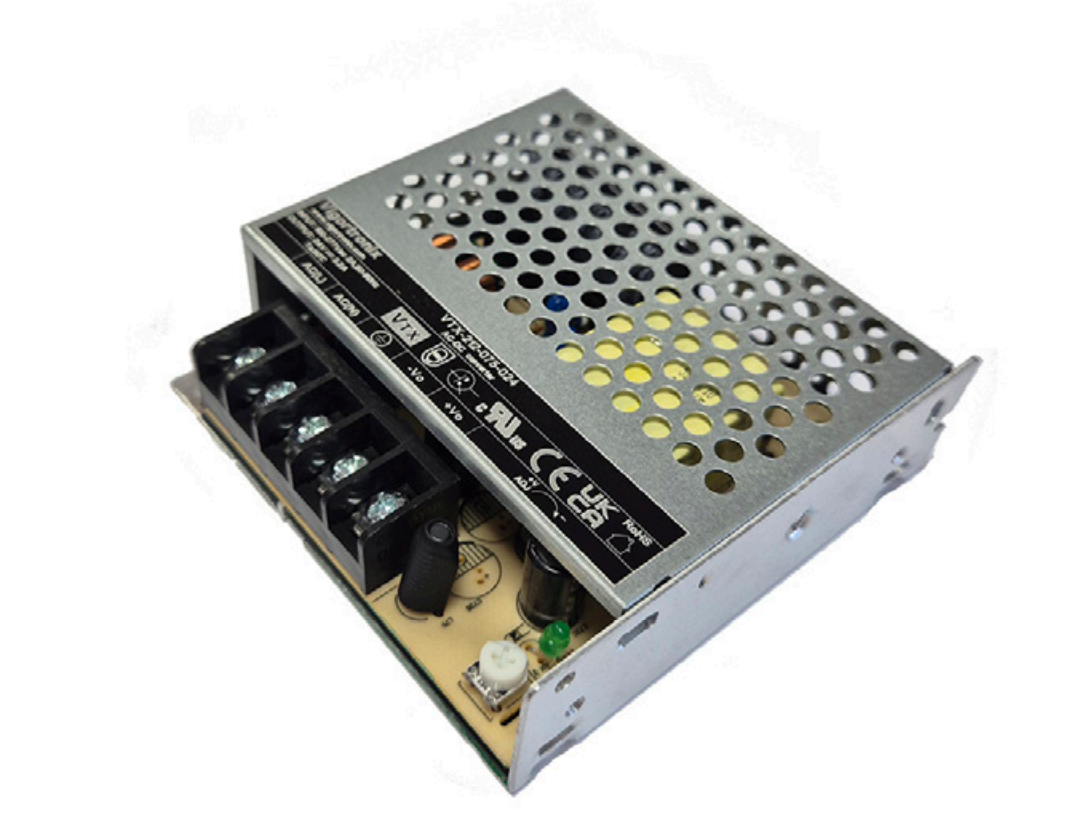

75 Watt Enclosed Power Supply Series

Overview

• 75W Compact Size 99.0 x 97.0 x 30.0mm
• Wide AC & DC Input 85V to 305VAC
• Temperature Range -30OC to +70OC
• Over-voltage Category OVC III
• Output Range: 3.3V – 48VDC
• Low Standby Power <0.5W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• UL/EN62368-1, EN61558, EN60335
• 3 Year Warranty

Datasheet

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-212-075-00570514000
VTX-212-075-01272126000
VTX-212-075-01575155000
VTX-212-075-02476.8243200
VTX-212-075-03675.6362100
VTX-212-075-04876.8481600
VTX-212-075-05576.8551360
