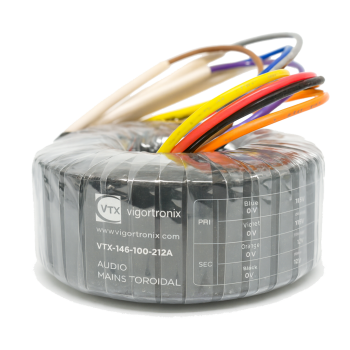

Dual Primary Audio Toroidal

Overview

  • UL Approved
  • Audio grade toroidal with 27Q120 core
  • 2 layer GOSS band shielding
  • High Quality Open Style Toroidal Transformer
  • Dual Primary/Secondary windings
  • Thermal fuses fitted to each Primary winding
  • Very low level radiated magnetic field
  • Supplied with mounting Kit
  • Compliant Standards, EN61558, EN62368, UL, C-UL,
    CE and UKCA.
  • 100% electrical and flash tested.
Datasheet

Description

Part NumberPower Rating (VA)Output Voltage (VAC)Output Current (A)
VTX-146-080-209A802 X 94.44
VTX-146-080-212A802 X 123.33
VTX-146-080-215A802 X 152.67
VTX-146-080-218A802 X 182.22
VTX-146-100-209A1002 X 95.55
VTX-146-100-212A1002 X 124.15
VTX-146-100-215A1002 X 153.33
VTX-146-100-218A1002 X 182.77
VTX-146-120-209A1202 X 96.66
VTX-146-120-212A1202 X 125
VTX-146-120-215A1202 X 154
VTX-146-120-218A1202 X 183.33
