Description
| Part Number | Inductance (mH) | DCR (mΩ) | I rms (A) |
|---|---|---|---|
| VTX-520-833 | 33 | 210 | 3 |
| VTX-520-0601 | 11.5 | 100 | 4 |
| VTX-520-0602 | 8 | 55 | 5 |
| VTX-520-0603 | 6 | 35 | 10 |
| VTX-520-0604 | 2.9 | 18 | 12 |
| VTX-520-0605 | 1.1 | 10 | 16 |

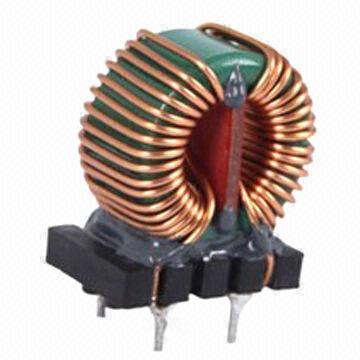

Choke Filter Base Mount
Overview
-
Vertical Mount on a Base.
-
Core with 3mm insulator
-
Operational temperature -40oC ~ +125oC
-
Dielectric Strength: 2400 Vrms
-
Custom Design offered
