Dual Primary Toroidal 2 x 115V / 230V

Overview

UL Approved
Input: 0-115V + 0-115V, 230V

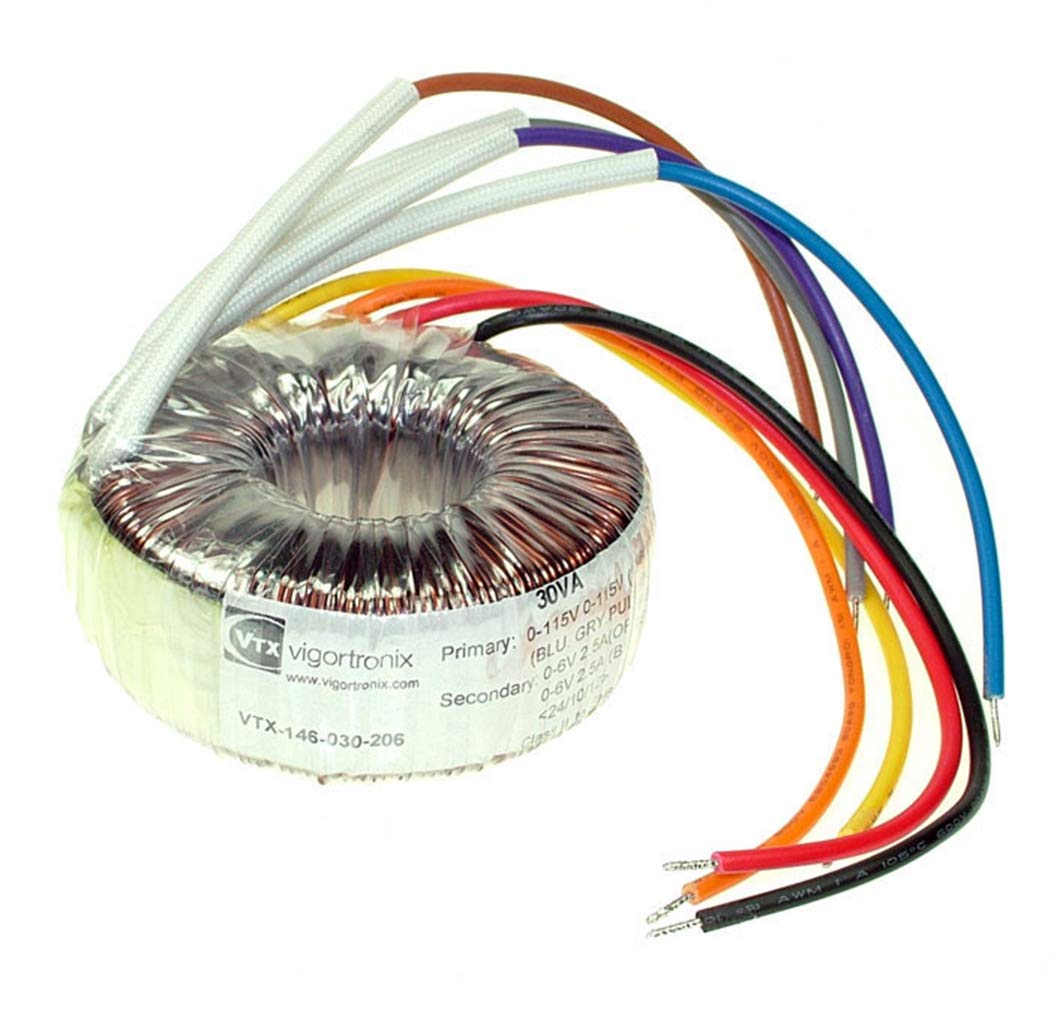

High Quality Open Style Toroidal Transformer
Single Primary/ Dual Secondary windings
Very low level radiated magnetic field.
Supplied with mounting Kit
Dielectric strength: 4200Vrms 100% tested
Compliant Standards, EN61558, EN60950, UL, C-UL and CE

Datasheet

Description

Part Number	Power Rating	Output Voltage (VAC)	Output Current (A)
VTX-146-015-206	15	2 x 6	1.25
VTX-146-015-209	15	2 x 9	0.83
VTX-146-015-212	15	2 x 12	0.63
VTX-146-015-215	15	2 x 15	0.5
VTX-146-015-218	15	2 x 18	0.42
VTX-146-015-224	15	2 x 24	0.3125
VTX-146-015-225	15	2 x 25	0.3
VTX-146-030-206	30	2 x 6	2.5
VTX-146-030-209	30	2 x 9	1.67
VTX-146-030-212	30	2 x 12	1.25
VTX-146-030-215	30	2 x 15	1
VTX-146-030-218	30	2 x 18	0.83
VTX-146-030-224	30	2 x 24	0.625
VTX-146-030-225	30	2 x 25	0.6
VTX-146-050-206	50	2 x 6	4.17
VTX-146-050-209	50	2 x 9	2.78
VTX-146-050-212	50	2 x 12	2.08
VTX-146-050-215	50	2 x 15	1.67
VTX-146-050-218	50	2 x 18	1.39
VTX-146-050-224	50	2 x 24	1.05
VTX-146-050-225	50	2 x 25	1
VTX-146-050-255	50	2 x 55	0.45
VTX-146-060-206	60	2 x 6	5
VTX-146-060-209	60	2 x 9	3.33
VTX-146-060-212	60	2 x 12	2.5
VTX-146-060-215	60	2 x 15	2
VTX-146-060-218	60	2 x 18	1.66
VTX-146-060-224	60	2 x 24	1.25
VTX-146-060-225	60	2 x 25	1.2
VTX-146-060-230	60	2 x 30	1
VTX-146-060-250	60	2 x 55	0.55
VTX-146-080-209	80	2 x 9	4.44
VTX-146-080-212	80	2 x 12	3.33
VTX-146-080-215	80	2 x 15	2.67
VTX-146-080-218	80	2 x 18	2.22
VTX-146-080-224	80	2 X 24	1.66
VTX-146-080-225	80	2 X 25	1.6
VTX-146-080-240	80	2 X 40	1.33
VTX-146-080-255	80	2 X 55	0.73
VTX-146-100-209	100	2 x 9	5.55
VTX-146-100-212	100	2 x 12	4.15
VTX-146-100-215	100	2 x 15	3.33
VTX-146-100-218	100	2 x 18	2.77
VTX-146-100-224	100	2 x 24	2.08
VTX-146-100-225	100	2 x 25	2
VTX-146-100-230	100	2 x 30	1.66
VTX-146-100-255	100	2 x 55	0.9
VTX-146-120-209	120	2 x 9	6.66
VTX-146-120-212	120	2 x 12	5
VTX-146-120-215	120	2 x 15	4
VTX-146-120-218	120	2 x 18	3.33
VTX-146-120-224	120	2 x 24	2.5
VTX-146-120-225	120	2 x 25	2.4
VTX-146-120-230	120	2 x 30	2
VTX-146-120-255	120	2 x 55	1.09
VTX-146-160-209	160	2 x 9	8.88
VTX-146-160-212	160	2 x 12	6.67
VTX-146-160-215	160	2 x 15	5.33
VTX-146-160-218	160	2 x 18	4.44
VTX-146-160-224	160	2 x 24	3.33
VTX-146-160-225	160	2 x 25	3.2
VTX-146-160-230	160	2 x 30	2.67
VTX-146-160-255	160	2 x 55	1.45
VTX-146-225-212	225	2 x 12	9.38
VTX-146-225-215	225	2 x 15	7.5
VTX-146-225-218	225	2 x 18	6.3
VTX-146-225-224	225	2 x 24	4.68
VTX-146-225-225	225	2 x 25	4.5
VTX-146-225-230	225	2 x 30	3.75
VTX-146-225-250	225	2 x 50	2.25
VTX-146-225-255	225	2 x 55	2.05
VTX-146-250-212	250	2 x 12	10.42
VTX-146-250-215	250	2 x 15	8.33
VTX-146-250-218	250	2 x 18	6.95
VTX-146-250-225	250	2 x 25	5
VTX-146-250-230	250	2 x 30	4.16
VTX-146-250-235	250	2 x 35	3.57
VTX-146-250-240	250	2 x 40	3.125
VTX-146-250-245	250	2 x 45	2.77
VTX-146-250-250	250	2 x 50	2.5
VTX-146-250-255	250	2 x 55	2.27
VTX-146-300-212	300	2 x 12	12.5
VTX-146-300-215	300	2 x 15	10
VTX-146-300-218	300	2 x 18	8.33
VTX-146-300-224	300	2 x 24	6.25
VTX-146-300-225	300	2 x 25	6
VTX-146-300-230	300	2 x 30	5
VTX-146-300-235	300	2 x 35	4.28
VTX-146-300-255	300	2 X 55	2.73
VTX-146-500-224	500	2 x 24	10.4
VTX-146-500-225	500	2 x 25	10
VTX-146-500-230	500	2 x 30	8.33
VTX-146-500-235	500	2 x 35	7.14
VTX-146-500-240	500	2 x 40	6.25
VTX-146-500-245	500	2 x 45	5.56
VTX-146-500-250	500	2 x 50	5
VTX-146-500-255	500	2 x 55	4.55
VTX-146-625-225	625	2 x 25	12.5
VTX-146-625-240	625	2 x 40	7.8
VTX-146-625-245	625	2 X 45	6.95
VTX-146-625-250	625	2 x 50	6.25
VTX-146-625-255	625	2 x 55	5.68
VTX-146-800-240	800	2 x 40	10
VTX-146-800-245	800	2 x 45	8.88
VTX-146-800-250	800	2 x 50	8
VTX-146-800-255	800	2 x 55	7.27
VTX-146-1000-225	1000	2 x 25	20
VTX-146-1000-240	1000	2 x 40	12.5
VTX-146-1000-245	1000	2 x 45	11.11
VTX-146-1000-250	1000	2 x 50	10
VTX-146-1000-255	1000	2 x 55	9.09
