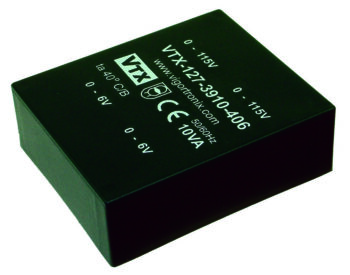

Low Profile Transformers – UI39 10-30VA

Overview

  • Power rating: 2 ~ 30VA
  • Ambient temperature: 40ºC
  • Temperature class: Class B (130ºC)
  • Dielectric strength: 4200Vrms
  • 100% electrical and flash tested.
  • Manufactured and tested in accordance to EN61558 and EN60950
Datasheet

Description

Part NumberPower Rating (VA)Input Voltage (Vac)Ouput Voltage (Vac)
VTX-127-3910-406102 x 1152 x 6
VTX-127-3910-409102 x 1152 x 9
VTX-127-3910-412102 x 1152 x 12
VTX-127-3910-415102 x 1152 x 15
VTX-127-3910-418102 x 1152 x 18
VTX-127-3910-424102 x 1152 x 24
VTX-127-3914-406142 x 1152 x 6
VTX-127-3914-409142 x 1152 x 9
VTX-127-3914-412142 x 1152 x 12
VTX-127-3914-415142 x 1152 x 15
VTX-127-3914-418142 x 1152 X 18
VTX-127-3914-424142 x 1152 X 24
VTX-127-3918-406182 x 1152 x 6
VTX-127-3918-409182 x 1152 x 9
VTX-127-3918-412182 x 1152 x 12
VTX-127-3918-415182 x 1152 x 15
VTX-127-3918-418182 x 1152 x 18
VTX-127-3918-424182 x 1152 x 24
VTX-127-3924-406242 x 1152 x 6
VTX-127-3924-409242 x 1152 x 9
VTX-127-3924-412242 x 1152 x 12
VTX-127-3924-415242 x 1152 x 15
VTX-127-3924-418242 x 1152 x 18
VTX-127-3924-424242 x 1152 x 24
VTX-127-3930-406302 x 1152 x 6
VTX-127-3930-409302 x 1152 x 9
VTX-127-3930-412302 x 1152 x 12
VTX-127-3930-415302 x 1152 x 15
VTX-127-3930-418302 x 1152 x 18
VTX-127-3930-424302 x 1152 x 24
