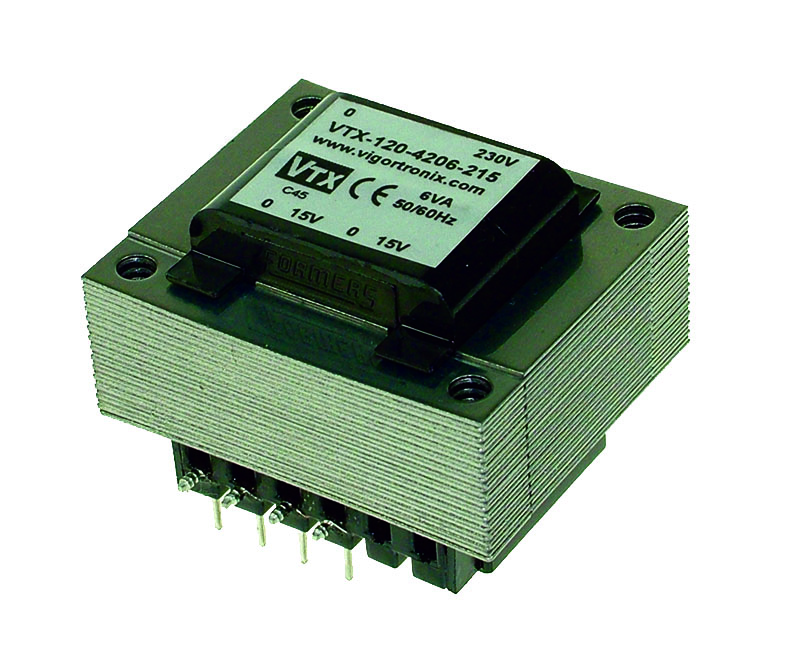

PCB Transformers: Dual Primary 230V/ 115V
- Made in the UK
- Input Voltage 115Vac or 230Vac
- Power: 3 ~ 36 VA 50/60Hz
- High Quality PCB Transformer
- UL94-V0 Materials
- Isolated Primary/Secondary windings
- Temperature Class: – Class B (130ºC)
- Dielectric Strength: 4200Vrms
- Manufactured and tested in accordance to EN61558, EN60950, CE
Datasheet
PCB Transformers: Dual Primary 230V/ 115V
Description
| Part Number | Power Rating | Output Voltage (Vac) | Output Current (mA) |
| VTX-120-3803-4045 | 3 | 2 x 4.5 | 333 |
| VTX-120-3803-406 | 3 | 2 x 6 | 250 |
| VTX-120-3803-4075 | 3 | 2 x 7.5 | 200 |
| VTX-120-3803-409 | 3 | 2 x 9 | 166 |
| VTX-120-3803-412 | 3 | 2 x 12 | 125 |
| VTX-120-3803-415 | 3 | 2 x 15 | 100 |
| VTX-120-3803-418 | 3 | 2 x 18 | 83 |
| VTX-120-3803-420 | 3 | 2 x 20 | 75 |
| VTX-120-3803-424 | 3 | 2 x 24 | 63 |
| VTX-120-4206-4045 | 6 | 2 x 4.5 | 666 |
| VTX-120-4206-406 | 6 | 2 x 6 | 500 |
| VTX-120-4206-4075 | 6 | 2 x 7.5 | 400 |
| VTX-120-4206-409 | 6 | 2 x 9 | 333 |
| VTX-120-4206-412 | 6 | 2 x 12 | 250 |
| VTX-120-4206-415 | 6 | 2 x 15 | 200 |
| VTX-120-4206-418 | 6 | 2 x 18 | 166 |
| VTX-120-4206-420 | 6 | 2 x 20 | 150 |
| VTX-120-4206-424 | 6 | 2 x 24 | 125 |
| VTX-120-5412-4045 | 12 | 2 x 4.5 | 1333 |
| VTX-120-5412-406 | 12 | 2 x 6 | 1000 |
| VTX-120-5412-4075 | 12 | 2 x 7.5 | 800 |
| VTX-120-5412-409 | 12 | 2 x 9 | 666 |
| VTX-120-5412-412 | 12 | 2 x 12 | 500 |
| VTX-120-5412-415 | 12 | 2 x 15 | 400 |
| VTX-120-5412-418 | 12 | 2 x 18 | 333 |
| VTX-120-5412-420 | 12 | 2 x 20 | 300 |
| VTX-120-5412-424 | 12 | 2 x 24 | 250 |
