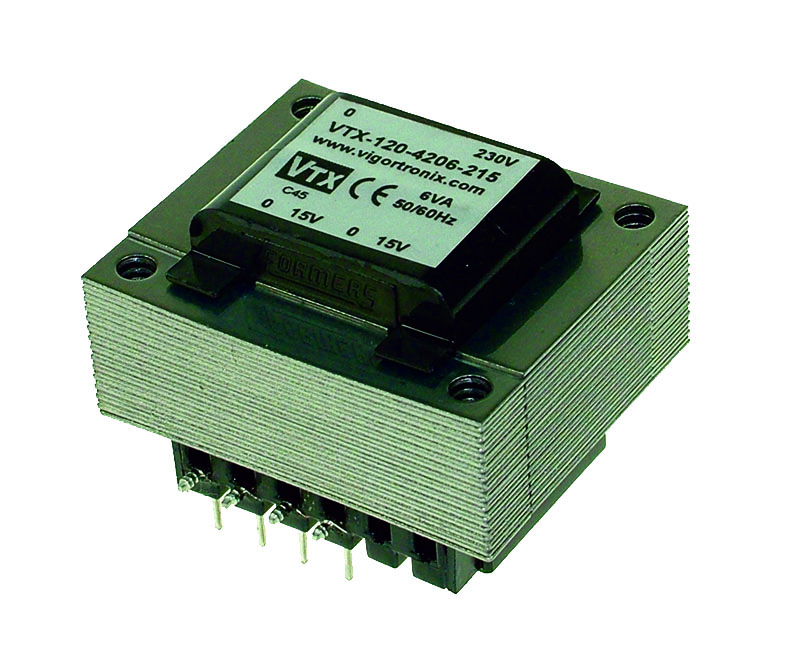

PCB Transformers: Dual Primary 240V/120V
- Made in the UK
- Input Voltage: 240 or 120V
- Power: 3 ~ 36 VA 50/60Hz
- High Quality PCB Transformer
- UL94-V0 Materials
- Isolated Primary/Secondary windings
- Temperature Class: – Class B (130ºC)
- Dielectric Strength: 4200Vrms
- Manufactured and tested in accordance to EN61558, EN60950, CE
Datasheet
PCB Transformers: Dual Primary 240V/120V
Description
| Part Number | Power Rating | Output Voltage (Vac) | Output Current (mA) |
| VTX-120-003-6045 | 3 | 2 x 4.5 | 333 |
| VTX-120-003-606 | 3 | 2 x 6 | 250 |
| VTX-120-003-609 | 3 | 2 x 9 | 166 |
| VTX-120-003-612 | 3 | 2 x 12 | 125 |
| VTX-120-003-615 | 3 | 2 x 15 | 100 |
| VTX-120-003-618 | 3 | 2 x 18 | 83 |
| VTX-120-003-620 | 3 | 2 x 20 | 75 |
| VTX-120-003-624 | 3 | 2 x 24 | 63 |
| VTX-120-006-6045 | 6 | 2 x 4.5 | 666 |
| VTX-120-006-606 | 6 | 2 x 6 | 500 |
| VTX-120-006-609 | 6 | 2 x 9 | 333 |
| VTX-120-006-612 | 6 | 2 x 12 | 250 |
| VTX-120-006-615 | 6 | 2 x 15 | 200 |
| VTX-120-006-618 | 6 | 2 x 18 | 166 |
| VTX-120-006-620 | 6 | 2 x 20 | 150 |
| VTX-120-006-624 | 6 | 2 x 24 | 125 |
| VTX-120-012-606 | 12 | 2 x 6 | 1000 |
| VTX-120-012-609 | 12 | 2 x 9 | 666 |
| VTX-120-012-612 | 12 | 2 x 12 | 500 |
| VTX-120-012-615 | 12 | 2 x 15 | 400 |
| VTX-120-012-618 | 12 | 2 x 18 | 333 |
| VTX-120-012-620 | 12 | 2 x 20 | 300 |
| VTX-120-012-624 | 12 | 2 x 24 | 250 |
