Description
| Part Number | Inductance uH | I.dc | ETop V-uSec |
|---|---|---|---|
| VTX-512-0501 | 47 | 6.0 | 90 |
| VTX-512-0502 | 66 | 5.0 | 90 |
| VTX-512-0503 | 100 | 3.0 | 90 |
| VTX-512-0504 | 150 | 2.0 | 90 |
| VTX-512-0505 | 220 | 1.4 | 90 |
| VTX-512-0507 | 330 | 0.9 | 90 |
| VTX-512-0509 | 470 | 0.85 | 90 |
| VTX-512-0510 | 680 | 0.65 | 90 |

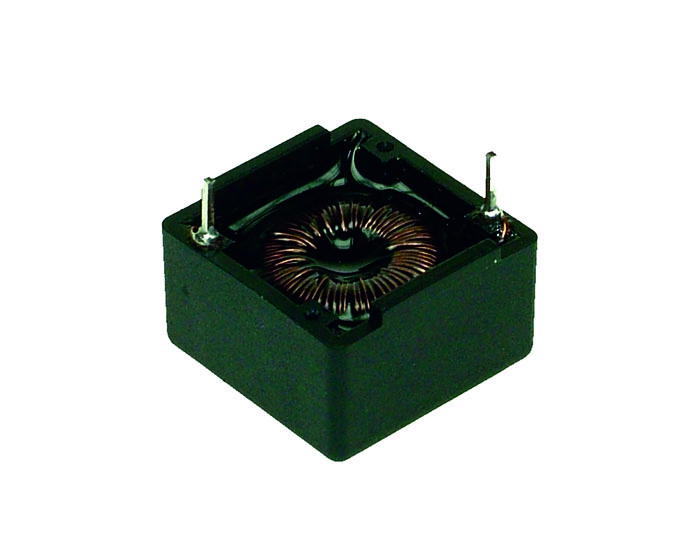

VTX-512-05XX Series
Overview
Features:
-
Designed for National Semiconductor 50kHz S. Switcher
-
Operational Temperature: -40 ~ +110OC
-
Used with Nationals LM2574/LM2575/LM2576
-
Base Material meet UL 94V-0
-
RoHS Compliant
