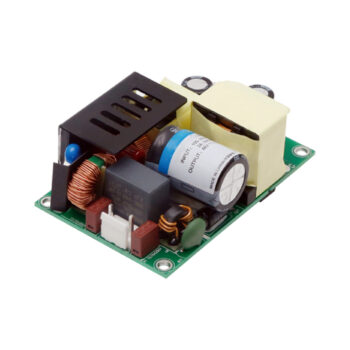

• 120W High Power Density 76.2 x 50.8 x 31.0mm
• Wide AC & DC Input 85V to 264VAC
• Active PFC
• Temperature Range -40OC to +85OC
• Protection: OVP, OCP and Output Short Circuit
• Output Range: 12V – 54VDC
• Low Standby Power <0.5W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558, EN60335, EN60601
• 3 Year Warranty
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-210-120-012 | 114 | 12 | 9500 |
| VTX-210-120-015 | 114 | 15 | 7600 |
| VTX-210-120-024 | 120 | 24 | 5000 |
| VTX-210-120-027 | 119.9 | 27 | 4441 |
| VTX-210-120-036 | 120 | 36 | 3333 |
| VTX-210-120-048 | 120 | 48 | 2500 |
| VTX-210-120-054 | 120 | 54 | 2222 |
