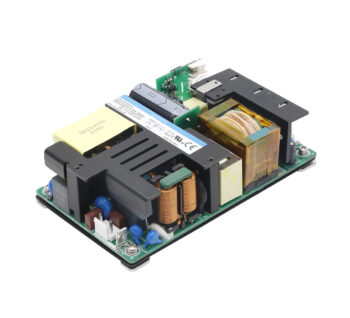

550 Watt PCB Open Frame AC-DC Power Supply

Overview

• 550W High Power Density 127 x 76.2 x 40.5mm
• Wide AC & DC Input 90V to 264VAC
• Active PFC
• Temperature Range -40OC to +70OC
• Protection: OVP, OCP and Output Short Circuit
• Output Range: 12V – 48VDC
• Low Standby Power <1.0W
• Fully Isolated Pri – Sec >4000Vrms
• PG signal and remote sensing function
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558, EN60601
• 3 Year Warranty

Datasheet

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-210-550-012499.21241600
VTX-210-550-015499.51533300
VTX-210-550-024549.62422900
VTX-210-550-027550.82720400
VTX-210-550-036550.83615300
VTX-210-550-0485504811458
