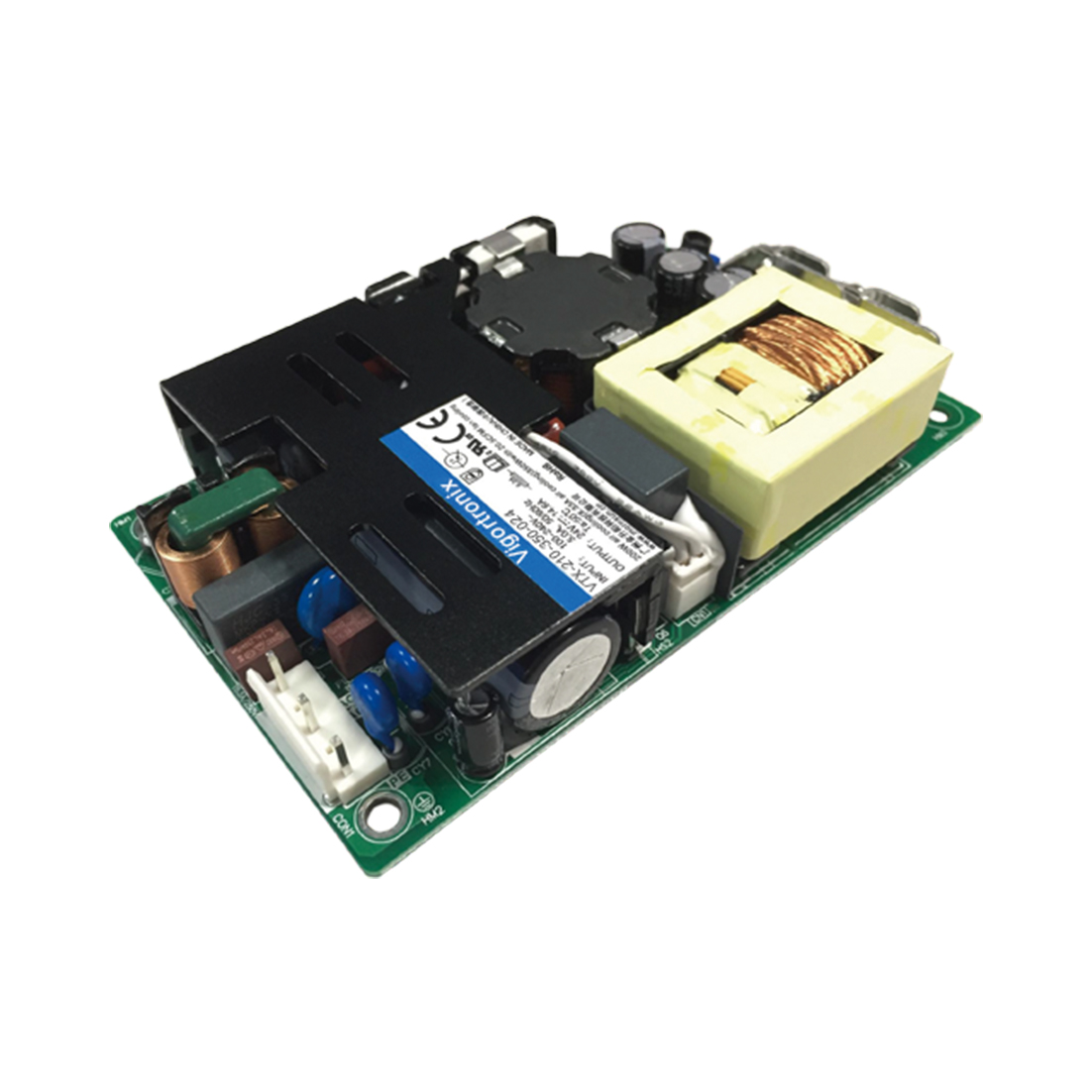

350 Watt PCB Open Frame AC-DC Power Supply

Overview

• 350W High Power Density 127 x 76.2 x 25.4mm
• Wide AC & DC Input 90V to 264VAC
• Active PFC
• Temperature Range -40OC to +70OC
• Protection: OVP, OCP and Output Short Circuit
• Output Range: 12V – 54VDC
• Low Standby Power <1.0W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558, EN60335, ES60601
• 3 Year Warranty

Datasheet

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-210-350-0123001225000
VTX-210-350-0153251521667
VTX-210-350-024350.42414600
VTX-210-350-0273512713000
VTX-210-350-036350.28369730
VTX-210-350-048350.4487300
VTX-210-350-054351546500
