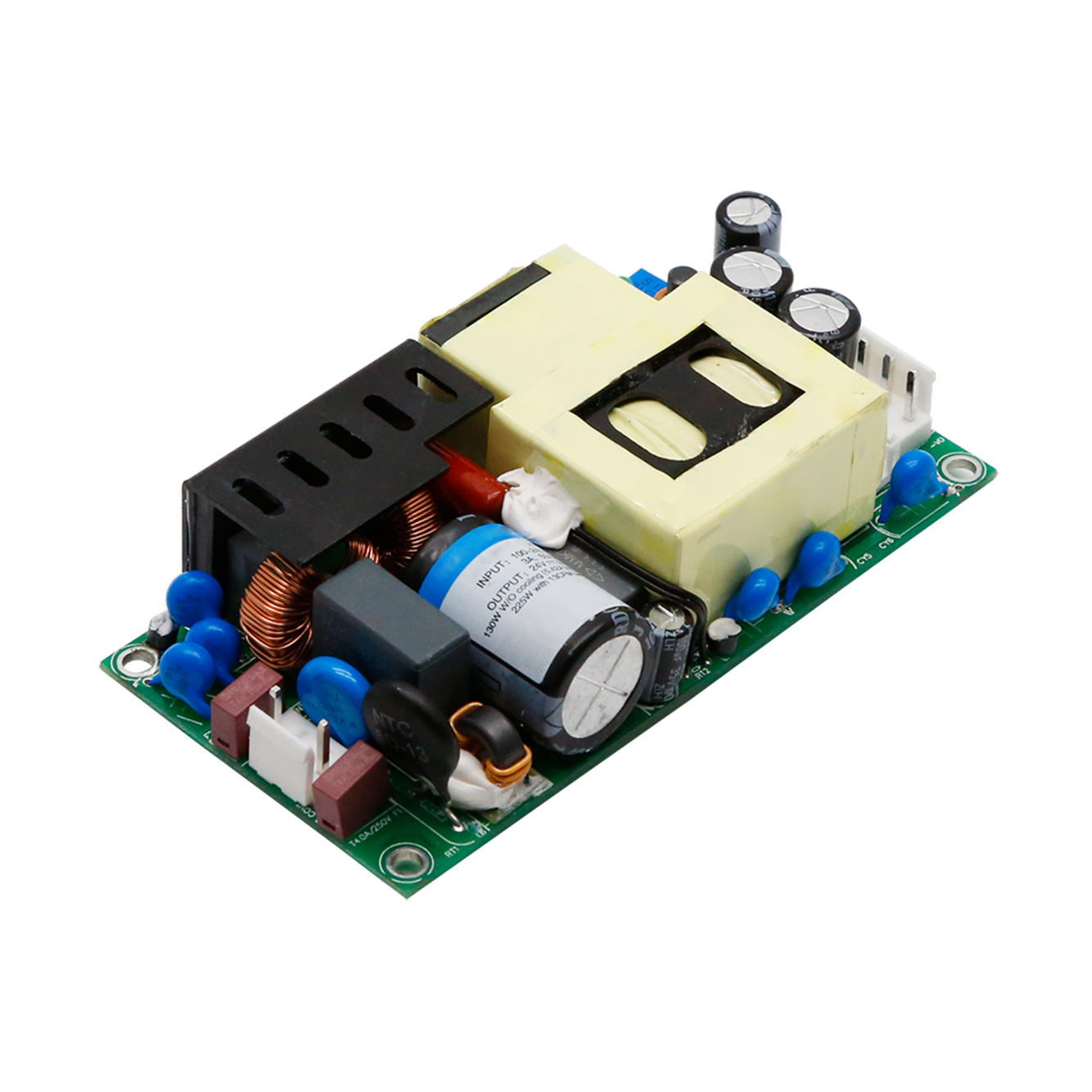

• 225W High Power Density 101.6 x 50.8 x 25.4mm
• Wide AC & DC Input 85V to 264VAC
• Active PFC
• Temperature Range -40OC to +70OC
• Protection: OVP, OCP and Output Short Circuit
• Output Range: 12V – 54VDC
• Low Standby Power <0.5W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558, EN60335, EN60601
• 3 Year Warranty
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-210-225-012 | 225 | 12 | 18750 |
| VTX-210-225-015 | 225 | 15 | 15000 |
| VTX-210-225-024 | 225 | 24 | 9375 |
| VTX-210-225-027 | 225 | 27 | 8333 |
| VTX-210-225-036 | 225 | 36 | 6250 |
| VTX-210-225-048 | 225 | 48 | 4688 |
| VTX-210-225-054 | 225 | 54 | 4167 |
