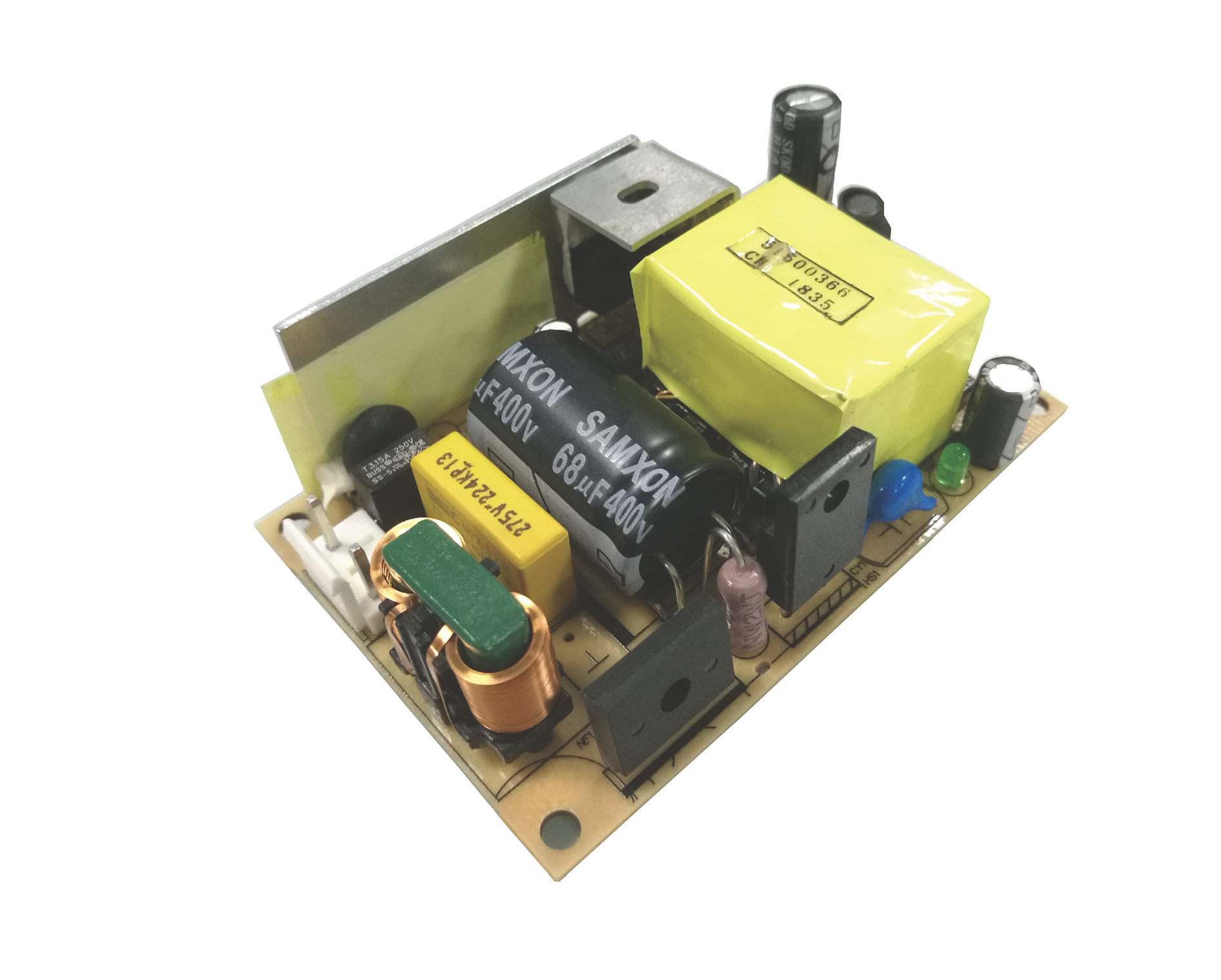

45 Watt PCB Open Frame AC-DC Power Supply

Overview

• 45W High Power Density 76.2 x 50.8 x 27.0mm
• Wide AC & DC Input 85V to 264VAC
• Temperature Range -25OC to +70OC
• Protection: OVP, OCP and Output Short Circuit
• Output Range: 3.3V – 48VDC
• Low Standby Power <0.5W
• Fully Isolated Pri – Sec >3000Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368
• 2 Year Warranty

Datasheet

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-210-045-00326.43.38000
VTX-210-045-0054058000
VTX-210-045-0094094444
VTX-210-045-01245123750
VTX-210-045-01545153000
VTX-210-045-02445241875
VTX-210-045-0484548938
