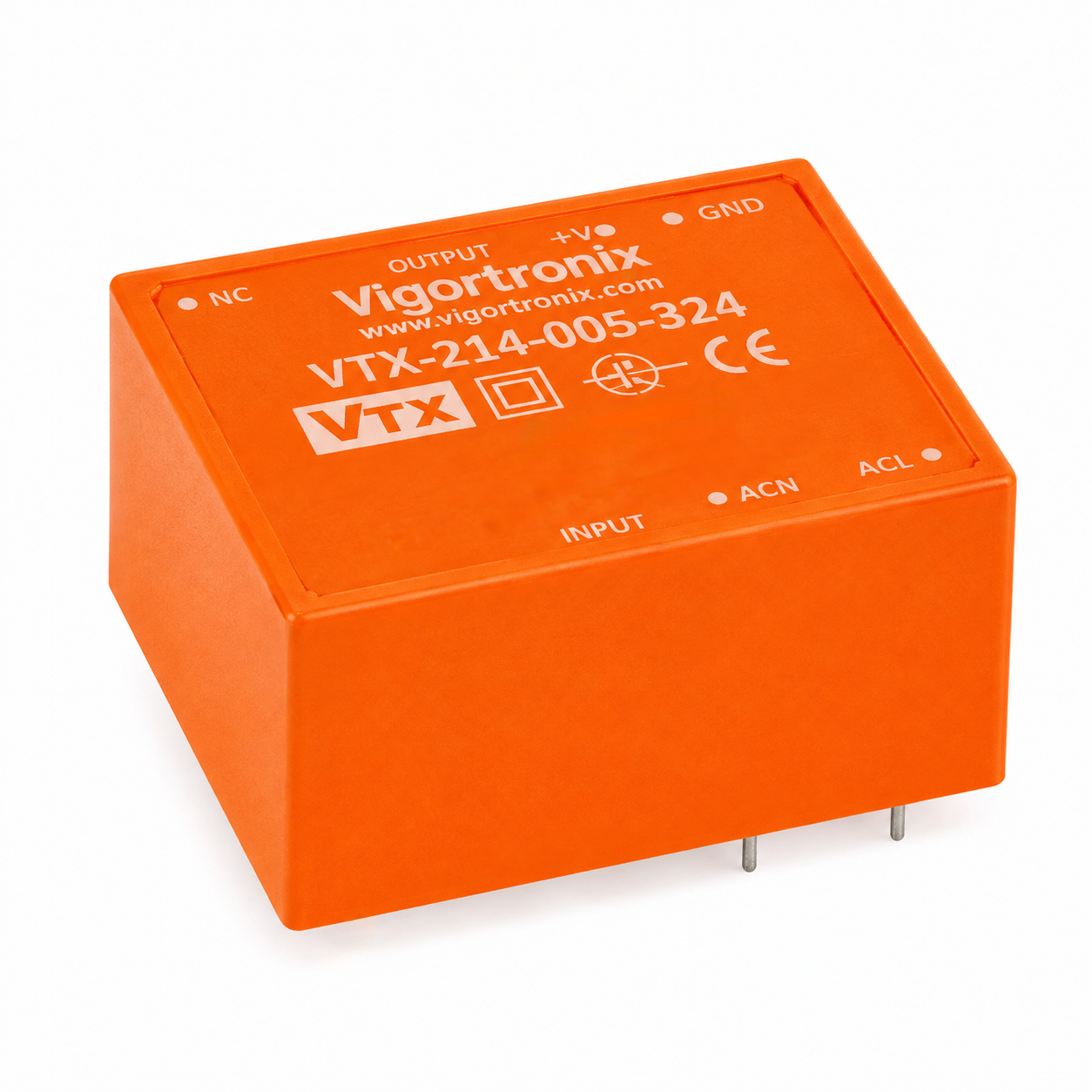

5 Watt AC-DC Converter (3 Series)

Overview

• 5W Single Output – Regulated
• Output Range: 3.3V – 24VDC
• Input: 90 – 305VAC , 47 – 440Hz
• Low Standby Power <0.1W
• Size: 37.0 x 27.5 x 17.5mm
• Fully Isolated Pri – Sec 4000Vrms
• EMC Compliant without external components
• Materials: UL94-V0
• Safety: UL/IEC/EN62368-1, EN60335-1, CE,

Datasheet CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-005-30353.31515
VTX-214-005-305551000
VTX-214-005-30757.5666
VTX-214-005-30959555
VTX-214-005-312512420
VTX-214-005-315515333
VTX-214-005-324524210
