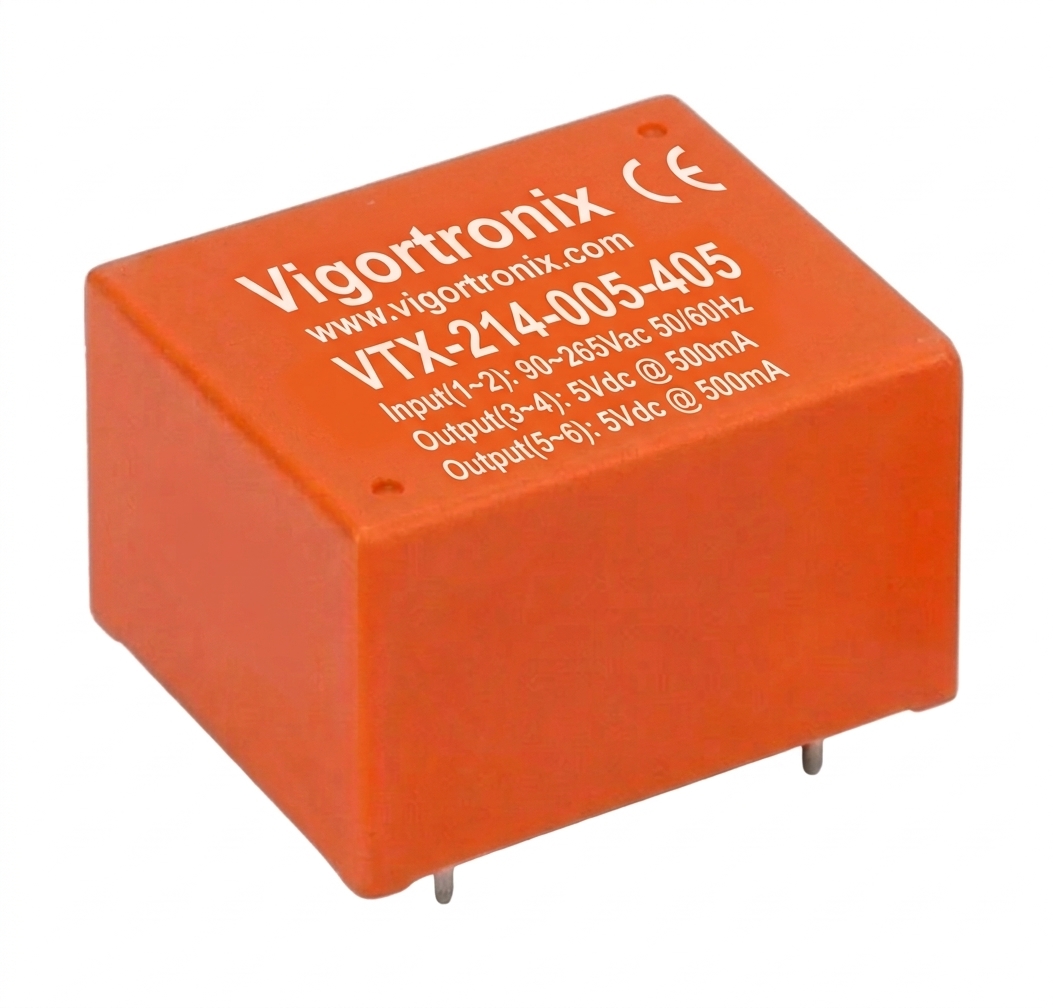

5 Watt Dual AC-DC Converters

Overview

• 5W Compact Size 32.5 x 27.5 x 19.5mm
• Wide AC & DC Input 90V to 264VAC (100 to 370VDC)
• Temperature Range -20OC to +70OC
• Dual Isolated Outputs
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• Safety: EN61558, EN60950, CE, UKCA

Datasheet Footprint

Description

Part NumberPower RatingOutput 1 Voltage/ CurrentOutput 2 Volatge/ Current
VTX-214-005-40353.3 V/ 750 mA3.3 V/ 750 mA
VTX-214-005-40555 V/ 500 mA5 V/ 500 mA
VTX-214-005-40757.5 V/ 330 mA7.5 V/ 330 mA
VTX-214-005-40959 V/ 250 mA9 V/ 250 mA
VTX-214-005-412512 V/ 166 mA12 V/ 166 mA
VTX-214-005-415515 V/ 138 mA15 V/ 138 mA
VTX-214-005-030553.3 V/ 750 mA5 V/ 500 mA
VTX-214-005-031253.3 V/ 750 mA12 V/ 208 mA
VTX-214-005-031553.3 V/ 750 mA15 V/ 160 mA
VTX-214-005-050355 V/ 500 mA3.3 V/ 750 mA
VTX-214-005-051255 V/ 500 mA12 V/ 208 mA
VTX-214-005-051555 V/ 500 mA15 V/ 160 mA
VTX-214-005-052455 V/ 500 mA24 V/ 100 mA
VTX-214-005-1203512 V/ 200 mA3.3 V/ 750 mA
VTX-214-005-1205512 V/ 200 mA5 V/ 500 mA
VTX-214-005-151255 V/ 1000 mA24 V/ 200 mA
