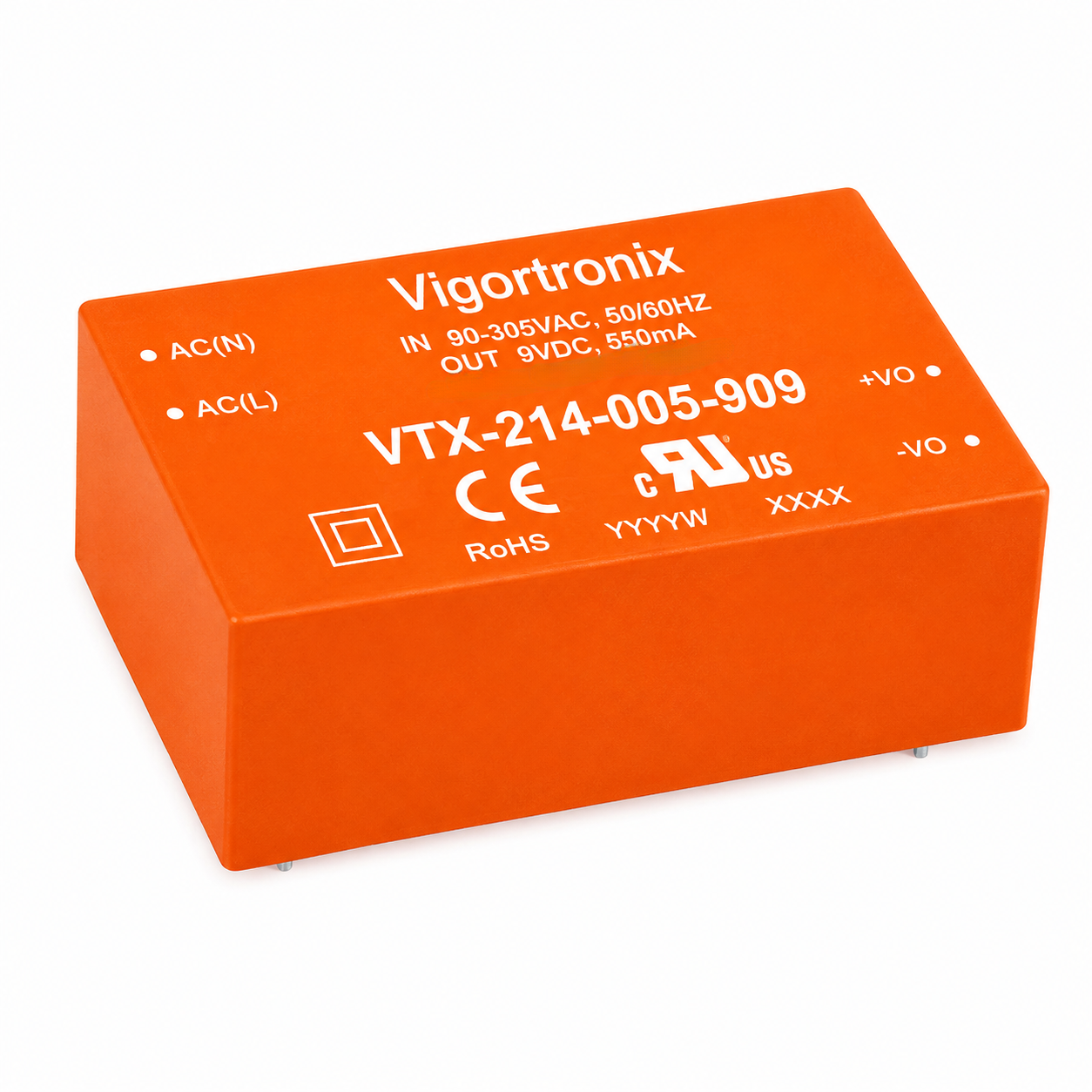

VTX-214-005-9xx Image

5 Watt AC-DC Converter (9 Series)

Overview

• 5W Single Output – Regulated
• Output Range: 3.3V – 24VDC
• Input: 90 – 305VAC , 47 – 440Hz
• Low Standby Power <0.1W
• EMC Compliant without External Components
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• Safety: EN60335-1, EN62368-1, CE,

Datasheet CAD File

Description

Description

Part Number	Power Rating	Output Voltage (VDC)	Output Current (mA)
VTX-214-005-903	5	3.3	1500
VTX-214-005-905	5	5	1000
VTX-214-005-909	5	9	550
VTX-214-005-912	5	12	420
VTX-214-005-924	5	24	210
