VTX-214-005-803 D0057 Iss2

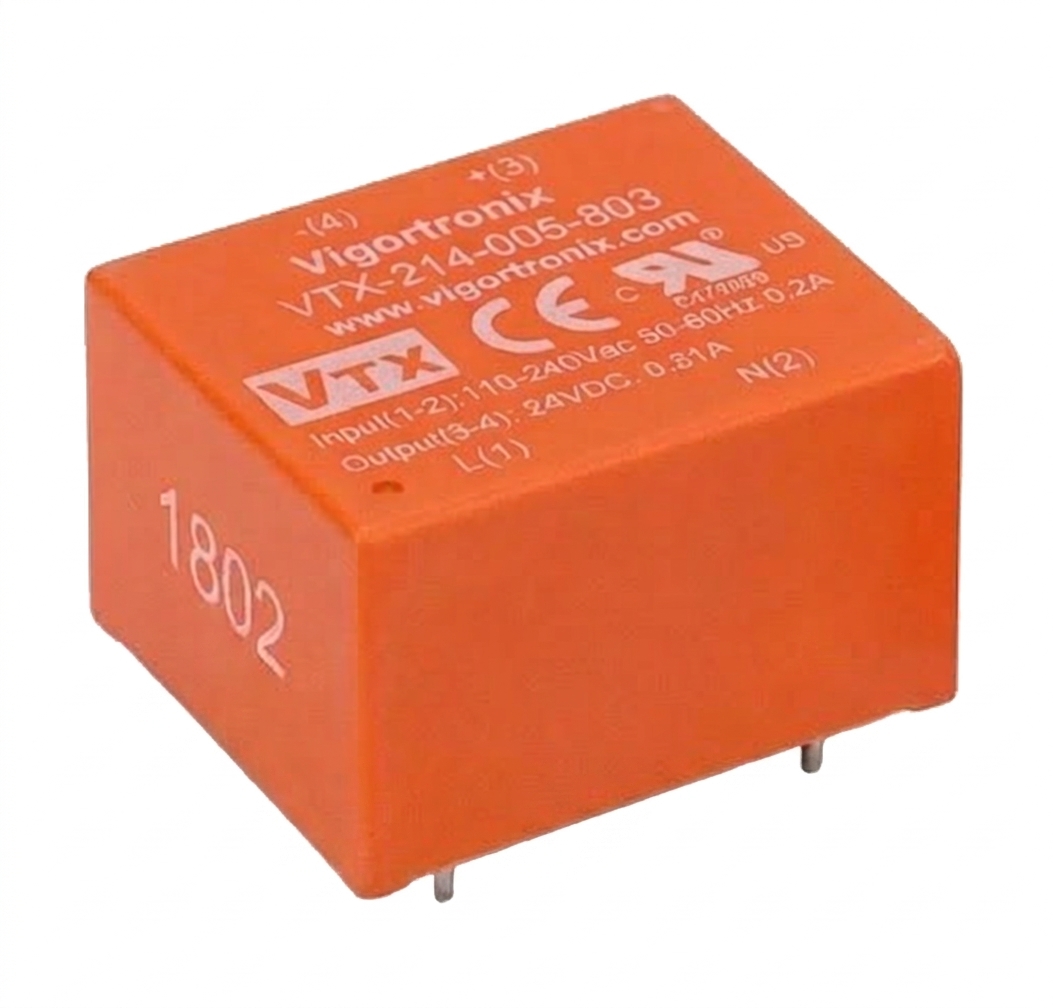

5 Watt Compact AC-DC Converter (8 Series)

Overview

• 5W Small Compact Size
• Single Output – Regulated
• Output Range: 3.8V
• Low Standby Power <0.2W
• Fully Isolated Pri – Sec >4200Vrms
• Insulation: Class II
• Materials: UL94-V0
• Safety: EN61558, EN60950, CE, UL

Datasheet CAD File

Description

Description

Part Number	Power Rating Watts	Output Voltage (VDC)	Output Current (mA)	Ambient Temp (*C)	Efficiency Typical	Input Range
VTX-214-005-803	4.5	3.8	1315	50	>65%	85-265VAC (100-370VDC)
